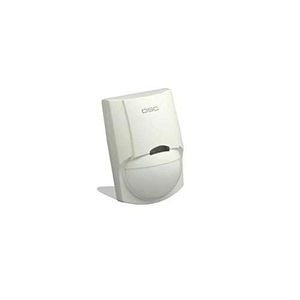

DSC LC-100-PI-6PK PIR Detector With Pet Immunity 9.6 - 16 Volt DC

hello this video is to go over the installation of a DSC LC 100 P I motion detector which looks like this prior to the installation you will need to run a 22 gauge working doctor wire like the one shown from your system security panel to the desired location of the motion to prepare the motion detector for mounting loosen the screw on the bottom of the motion detector until it is free then separate the front cover by pulling out on the bottom and rotating up you will then see the screw terminals inside knock out one of these four square knockout locations to bring the wire through to gain access to the lower mounting locations undo the screw on the circuit board and it will simply lift off to mount the base plate to a wall run four screws through these four rear locations if you're mounting to a corner run four screws through the corner locations before terminating the wiring strip each
