Description
Matching Code/ Binding:
All receivers are already paired with their respective transmitter during production. If you want to bind it with another transmitter, please follow the instructions below.
1.Ensure you are using AFHDS2A system.
2.Correctly install the battery inside 2.4G transmitter w/o powering it on.
3.Insert the binding plug into the BIND channel slot on the receiver.
4.Using a correct receiver battery pack, plug it into VCC channel slot on the receiver. At this time, the LED on receiver should flash, indicating receiver has entered bind status.
5.Press and hold the binding button on transmitter, and then switch on the transmitter.
6.Observe the LED light on the receiver. If LED stops flashing and system lit permanently. The binding procedure is completed.(This process takes approximately 5S)
7.Release the binding button on the transmitter and unplug the bind cable.
8.Install the servos to test.
9.If the system does not work properly repeat the procedure.
(The above binding instruction is only suitable for any Flysky 2.4G products)
Transmitter Specifications
Channels:2
Model Type:Car/Boat
RF Range:2.405-2.475GHz
Bandwidth:500 KHz
Band:141
RF Power:No Higher than 20dBm
2.4GHz System:AFHDS2A/AFHDS
Code Type:GFSK
Sensitivity:1024
Low Voltage Warning:under 4.2V
DSC Port:3.5mm; Output: PPM
Steering Range: 70° L: 35° R: 35°
Throttle Range: 45° F: 35° B: 15°
Charger Port: No
Antenna Length:26mm
Power:6V DC 1.5AA*4
Display Mode:LED indicator
Certificate:CE, FCC
Receiver Specifications
Channels:3
Model Type:Car/Boat
RF Range:2.405-2.475GHz
Bandwidth:500 KHz
Band Sum:141
RF Receiver Sensitivity:-98dBm
2.4G System:AFHDS 2A
Code Type:GFSK
Sensitivity:1024
Power:4.0~6.5V DC
Antenna Length:26mm
Package Included
1 x FS-GT2E Transmitter
1 x FS- A3 Receiver
1 x Instructions
All receivers are already paired with their respective transmitter during production. If you want to bind it with another transmitter, please follow the instructions below.
1.Ensure you are using AFHDS2A system.
2.Correctly install the battery inside 2.4G transmitter w/o powering it on.
3.Insert the binding plug into the BIND channel slot on the receiver.
4.Using a correct receiver battery pack, plug it into VCC channel slot on the receiver. At this time, the LED on receiver should flash, indicating receiver has entered bind status.
5.Press and hold the binding button on transmitter, and then switch on the transmitter.
6.Observe the LED light on the receiver. If LED stops flashing and system lit permanently. The binding procedure is completed.(This process takes approximately 5S)
7.Release the binding button on the transmitter and unplug the bind cable.
8.Install the servos to test.
9.If the system does not work properly repeat the procedure.
(The above binding instruction is only suitable for any Flysky 2.4G products)
Transmitter Specifications
Channels:2
Model Type:Car/Boat
RF Range:2.405-2.475GHz
Bandwidth:500 KHz
Band:141
RF Power:No Higher than 20dBm
2.4GHz System:AFHDS2A/AFHDS
Code Type:GFSK
Sensitivity:1024
Low Voltage Warning:under 4.2V
DSC Port:3.5mm; Output: PPM
Steering Range: 70° L: 35° R: 35°
Throttle Range: 45° F: 35° B: 15°
Charger Port: No
Antenna Length:26mm
Power:6V DC 1.5AA*4
Display Mode:LED indicator
Certificate:CE, FCC
Receiver Specifications
Channels:3
Model Type:Car/Boat
RF Range:2.405-2.475GHz
Bandwidth:500 KHz
Band Sum:141
RF Receiver Sensitivity:-98dBm
2.4G System:AFHDS 2A
Code Type:GFSK
Sensitivity:1024
Power:4.0~6.5V DC
Antenna Length:26mm
Package Included
1 x FS-GT2E Transmitter
1 x FS- A3 Receiver
1 x Instructions

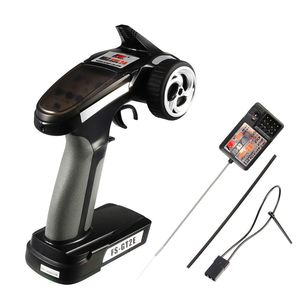

Favrison Flysky FS-GT2E AFHDS 2A 2.4ghz 2CH Radio System Transmitter for RC Car Boat with FS-A3 Receiver
