Description

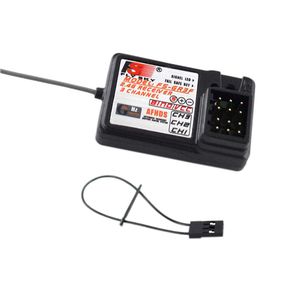

Flysky FS-GR3F Long Range Receiver, RCapture 2.4G 3CH Receiver Compatible with FS-GT2 / FS-GT2B / FS-GT3 / FS-GT3B / FS-GT3C / TH9X RC Car Boat Truck Transmitter

Number of Channels: 3
Application: car / boat
Frequency range :2.4-2 .48 GHz
Band Width: 500KHz
Number of bands: 160
Receiver sensitivity:-105dBm
2.4G mode: Auto FM digital system
Encoding: GFSK
Channel Resolution: 1024
Input power :4.0-6 .5 V DC
Antenna length: 26 mm
Weight: 5 grams
Dimensions: 35 * 22 * 12 mm
Color: Black

Packing List:
1 X FS-GR3F Receiver, 1 X Bind Plug, 1 X Antenna Tube.

Customer Service
3 Years Warranty Time and Life Limited Friendly Customer Service. Any Question, please click "Miuezuth" to contact us. Thank you.

Matching(Code)
A. Install the battery to 2.4G transmitter and shut it down.
B. Insert the matching lines to the channel BIND/CH3 port of the receiver.
C. Connect the receiver battery to VCC port of the receiver, on the same time the two LED are flashing and this means the receiver are going to the matching status.
D. Press and hold the button on the transmitter, and then switch on the power supply.
E. Observe the LED on the receiver, if find that the LED is not flash anymore and that means successful Matched. (This process about 5s)
F. Release the match button on the transmitter, take out the match line.
G. Install the server and then test.
H. If the tests fail, please repeat the action above.
I. If the tests success, then insert the power supply port into VCC, match complete.

More options for you:
fs-ia6b: B07PHC79F8
fs-r6b: B07PLHCQ4C
fs-gr3e: B07PHF7G9Q
waterproof fs-gr3e: B07PHFC5J2
fs-bs6: B07PJJYQW6
fs-i6: B07QG575R5
fs usb cable: B07QG575R5
