Description
Total Length 44mm
Plastic Part Length 14mm
Plastic Part Diameter 2.5mm
Contact Form A
Maximum power 10W
Maximum switching voltage 100VDC
High voltage 250VDC
Maximum switching current 0.5A
Maximum load current 1.0A
Maximum contact resistance 100M
Minimum insulation resistance 1010
Action time 1.0ms
Bounce time 0.6ms
Release Time 0.4ms
Response frequency 4000Hz
Maximum operating frequency 500Hz
Sensitive Value 10-15AT
Minimum reset Min Value 4FT
Maximum contact capacitance 0.7PF
Electrical life (load) 108 (5VDC, 10mA) 105 (24VDC, 400mA)
Test line circle number / Resistance 870/5000Ω
Package included:10 X Reed Switch
Plastic Part Length 14mm
Plastic Part Diameter 2.5mm
Contact Form A
Maximum power 10W
Maximum switching voltage 100VDC
High voltage 250VDC
Maximum switching current 0.5A
Maximum load current 1.0A
Maximum contact resistance 100M
Minimum insulation resistance 1010
Action time 1.0ms
Bounce time 0.6ms
Release Time 0.4ms
Response frequency 4000Hz
Maximum operating frequency 500Hz
Sensitive Value 10-15AT
Minimum reset Min Value 4FT
Maximum contact capacitance 0.7PF
Electrical life (load) 108 (5VDC, 10mA) 105 (24VDC, 400mA)
Test line circle number / Resistance 870/5000Ω
Package included:10 X Reed Switch

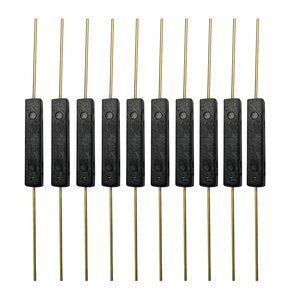

Gebildet 10pcs Plastic Reed Switch Reed Contact Normally Open (N/O) Magnetic Induction Switch (2.5mm×14mm)
