Description
Defualt ship single mode 0~20Km, if need multi-mode , contact us before order.
Premium Quality ,High Performance, buy with confidence.
Main features:
1. Modular design, high integration, stable and reliable performance
2. Provide telephone transmission 4channel
3. Can provide a route speed 100M Ethernet
4. Support Caller
5. Anti-interference ability, built-in lightning protection deal
6. Single-mode multi-mode adaptive, FC interface
Technical Specifications:
1. Voice Bandwidth: 8KHZ
2. Codec: PCM codec, each voice channel 256Kb / S, in line with ITU-T G.711
3. Signaling Control: Transparent support any in-band signaling, in line with ITU-T G.732
4. Interface communication terminals: ordinary telephone or PBX, PBX (PBX), a public telephone line PSTN network
5. Connection: point-phone hotline, telephone and switch mode
6. Ringing voltage: 75V, ringing frequency: 25HZ / 50Hz (FXS)
7. Return loss: 40 db
8. Ring Detection Voltage: 35V
9. Ring Detection Frequency: 17HZ-60HZ
10. Impedance: 200Ω + 680Ω || 0.1μF (FXO) ; 200Ω + 560Ω || 0.1μF (FXS)
11. Power consumption: less than 6W
12. Telephone Interface Type: RJ11
13. LAN Interface: 10 / 100BASE-T RJ45 connector
14. Fiber Interface Type: single-FC type connector
15. Transmission distance: single-mode 0-20KM,multimode 0-2Km (optional)
16. Optical Line Rate: 155MHZ
17. Optical transmission power: not less than -14dBm
18. Light-receiving sensitivity: better than -36dBm
19. Working voltage: DC 12V 1A
Package included:
1 Pair (Transmitter & Receiver)
2x power supply
Manual
Premium Quality ,High Performance, buy with confidence.
Main features:
1. Modular design, high integration, stable and reliable performance
2. Provide telephone transmission 4channel
3. Can provide a route speed 100M Ethernet
4. Support Caller
5. Anti-interference ability, built-in lightning protection deal
6. Single-mode multi-mode adaptive, FC interface
Technical Specifications:
1. Voice Bandwidth: 8KHZ
2. Codec: PCM codec, each voice channel 256Kb / S, in line with ITU-T G.711
3. Signaling Control: Transparent support any in-band signaling, in line with ITU-T G.732
4. Interface communication terminals: ordinary telephone or PBX, PBX (PBX), a public telephone line PSTN network
5. Connection: point-phone hotline, telephone and switch mode
6. Ringing voltage: 75V, ringing frequency: 25HZ / 50Hz (FXS)
7. Return loss: 40 db
8. Ring Detection Voltage: 35V
9. Ring Detection Frequency: 17HZ-60HZ
10. Impedance: 200Ω + 680Ω || 0.1μF (FXO) ; 200Ω + 560Ω || 0.1μF (FXS)
11. Power consumption: less than 6W
12. Telephone Interface Type: RJ11
13. LAN Interface: 10 / 100BASE-T RJ45 connector
14. Fiber Interface Type: single-FC type connector
15. Transmission distance: single-mode 0-20KM,multimode 0-2Km (optional)
16. Optical Line Rate: 155MHZ
17. Optical transmission power: not less than -14dBm
18. Light-receiving sensitivity: better than -36dBm
19. Working voltage: DC 12V 1A
Package included:
1 Pair (Transmitter & Receiver)
2x power supply
Manual

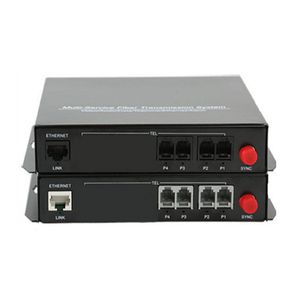

Guantai 4 Channels PCM Voice Telephone Fiber Optic Media Converter with 10/100M Ethernet,Long Distance Transmission up 20Km
