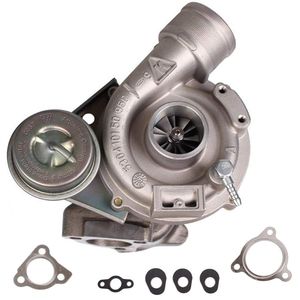

This K03 Turbocharger is a direct replacement for the original turbo found on the 1996-2004 Audi A4
and 1998-2005 Volkswagen Passat 1.8T engines. This turbocharger is not meant as an upgrade for the factory unit.
It is offered as a solution for a turbocharger that is beyond repair and needs replacement at an affordable
price. The K03 turbocharger is designed to be used on engines displacing 1.3L-2.0L and is typically good for
around 250HP. Recommended boost pressures are 7psi(.5 Bar) to 21psi(1.5 Bar) and boost pressures should
not exceed 30psi(2 Bar). Exceeding 21psi(1.5 Bar) of boost pressure can significantly reduce a turbochargers lifespan.
Specifics and Features:
100% brand new
Capable of boosting horse power up to 250+ HP
High quality material, cast housing with durable steel
3 bolt exhaust flange
3 bolt downpipe flange pattern
Compressor:
Trim: 46
M24 / T4 Compressor Housing
Exducer Diamter: 48.9mm
Inducer Diamter: 33mm
Inlet: 1.5"
Turbine:
Trim: 86
Outlet: 2.5"
Turbine Housing Flange: Volkswagon and Audi fitment
Downpipe flange: Volkswagon and Audi fitment
Includes:
1 X K03 Turbocharger
Hardware, such as, Bolt(s) and Gasket(s), if Any is Shown in the Picture Above
Notes:
Compatible with:
Audi A4 1,8T (B5) 1995-1998 year 150HP AEB
Audi A4 1,8T (B5) 1997-1998 year 180HP AJL
Audi A6 1,8T (C5) 1997-1999 year 150HP AEB
Audi A6 1,8T (C5) 1997-1999 year 180HP AJL
Volkswagen Passat B5 1,8T 1996-2000 150HP AEB
Audi A4 1,8T (B5) 1998-1999 year 150HP APU/ARK
Audi A4 1,8T (B6) 2002-2005 year 163HP BFB
Audi A6 1,8T (C5) 1998 year 150HP APU/ARK
Volkswagen Passat B5 1,8T 1996-2000 year APU/ARK
