If you do not find what you need, please send us an email and we will try our best to meet your needs.
This turbo is an universal application turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.
Application:
Perfect for all 4/6 cylinder and 2.5L-6.0L engines
Horse Power: Capable of Boosting Horse Power up to 600HP
Cooling Type: Water and Oil Cooled
Specification:
Exhaust Inlet (Turbo Manifold) Flange: T3 Flange
Exhaust Outlet (Downpipe) Flange: 4 Bolt
Turbine Trim: 84
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm
Turbine A/R: 0.63 (Blades Number 10 double)
Compressor Trim: 56
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compressor A/R: 0.7 (Blades Number 6 double)
Bearing: Wet Float
Internal Wastegate: No
Notice
* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us
* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (No Instruction Included)

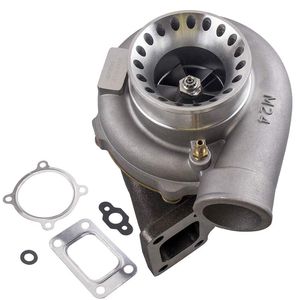

maXpeedingrods GT35 GT3582 GT3582R Turbo Charger Anti-Surge Compressor AR.70/63 600HP, Universal Turbocharger T3 Flange External Wastegate for 2.5L-6.0L Engines Water + Oil Cooled
If you do not find what you need, please send us an email and we will try our best to meet your needs.
This turbo is an universal application turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.
Application:
Perfect for all 4/6 cylinder and 2.5L-6.0L engines
Horse Power: Capable of Boosting Horse Power up to 600HP
Cooling Type: Water and Oil Cooled
Specification:
Exhaust Inlet (Turbo Manifold) Flange: T3 Flange
Exhaust Outlet (Downpipe) Flange: 4 Bolt
Turbine Trim: 84
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm
Turbine A/R: 0.63 (Blades Number 10 double)
Compressor Trim: 56
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compressor A/R: 0.7 (Blades Number 6 double)
Bearing: Wet Float
Internal Wastegate: No
Notice
* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us
* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (No Instruction Included)
