Description
This door lock is special in design with durable material. It can protect your home or business shops.
Low operational and standby current. It's especially suitable for wooden, glass and metal doors.
Product Features
1. 100% brand new and high quality
2. Secure mode: NC model (Locked when power on, unlocked when power off)
3. Especially suitable for wooden/ glass/ metal/ secuirty doors.
4. It is made from durable and high aluminum alloy material, durable for use
5. Can be opened by push button, remote controller, etc.
6. Built-in reverse current protection device (MOV).
7. Holding force with 280KG(600Lbs). Suitable for wooden, glass, metal, security door.
Product Specifications

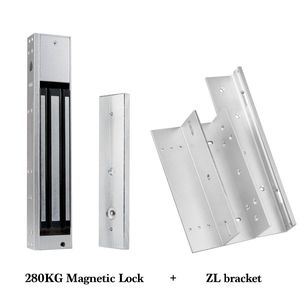

280KG Magnetic lock
Material: Aluminum alloy shell + iron plate
Holding force: 280KG/600lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Work for single door
ZL Bracket
Material Selection: High strength aluminum, sandblast finished
Suitable for Door: Inward door
Opening Mode: 90 degrees door
Use with: Magnetic lock series of 280kg/600Lbs
Finished for Shell: Anodized aluminum
Made of special aluminum, firm and durable
Special design, the inward door bracket is suitable for all kinds of the inward door
The best inward door bracket for access control
Size:
Z bracket 180*50*50mm
L bracket 252*42*28mm
Wiring Diagram
If you want to test the lock, please connect the red cable to "+12v", and black cable to "GND" of the 12VDC power supply.
When you install completed access control system kit set, please connect red cable to "NC", black cable to "COM" of the power supply.
Package Including:
1* 280KG magnetic Lock
1*ZL bracket for 280KG lock
1* installation kit
1* user manual
Low operational and standby current. It's especially suitable for wooden, glass and metal doors.
Product Features
1. 100% brand new and high quality
2. Secure mode: NC model (Locked when power on, unlocked when power off)
3. Especially suitable for wooden/ glass/ metal/ secuirty doors.
4. It is made from durable and high aluminum alloy material, durable for use
5. Can be opened by push button, remote controller, etc.
6. Built-in reverse current protection device (MOV).
7. Holding force with 280KG(600Lbs). Suitable for wooden, glass, metal, security door.
Product Specifications
280KG Magnetic lock
Material: Aluminum alloy shell + iron plate
Holding force: 280KG/600lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Work for single door
ZL Bracket
Material Selection: High strength aluminum, sandblast finished
Suitable for Door: Inward door
Opening Mode: 90 degrees door
Use with: Magnetic lock series of 280kg/600Lbs
Finished for Shell: Anodized aluminum
Made of special aluminum, firm and durable
Special design, the inward door bracket is suitable for all kinds of the inward door
The best inward door bracket for access control
Size:
Z bracket 180*50*50mm
L bracket 252*42*28mm
Wiring Diagram
If you want to test the lock, please connect the red cable to "+12v", and black cable to "GND" of the 12VDC power supply.
When you install completed access control system kit set, please connect red cable to "NC", black cable to "COM" of the power supply.
Package Including:
1* 280KG magnetic Lock
1*ZL bracket for 280KG lock
1* installation kit
1* user manual
HFeng Electromagnetic 280KG(600lbs) Magnetic Lock Access Control Electric Lock with ZL Bracket DC12V Fail Safe for Single Door
Price is below average
Current Price
$49.99
Average
$52.99
Min Price
$49.99
Max Price
$59
Price dynamics
6%
Description
This door lock is special in design with durable material. It can protect your home or business shops.
Low operational and standby current. It's especially suitable for wooden, glass and metal doors.
Product Features
1. 100% brand new and high quality
2. Secure mode: NC model (Locked when power on, unlocked when power off)
3. Especially suitable for wooden/ glass/ metal/ secuirty doors.
4. It is made from durable and high aluminum alloy material, durable for use
5. Can be opened by push button, remote controller, etc.
6. Built-in reverse current protection device (MOV).
7. Holding force with 280KG(600Lbs). Suitable for wooden, glass, metal, security door.
Product Specifications
280KG Magnetic lock
Material: Aluminum alloy shell + iron plate
Holding force: 280KG/600lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Work for single door
ZL Bracket
Material Selection: High strength aluminum, sandblast finished
Suitable for Door: Inward door
Opening Mode: 90 degrees door
Use with: Magnetic lock series of 280kg/600Lbs
Finished for Shell: Anodized aluminum
Made of special aluminum, firm and durable
Special design, the inward door bracket is suitable for all kinds of the inward door
The best inward door bracket for access control
Size:
Z bracket 180*50*50mm
L bracket 252*42*28mm
Wiring Diagram
If you want to test the lock, please connect the red cable to "+12v", and black cable to "GND" of the 12VDC power supply.
When you install completed access control system kit set, please connect red cable to "NC", black cable to "COM" of the power supply.
Package Including:
1* 280KG magnetic Lock
1*ZL bracket for 280KG lock
1* installation kit
1* user manual
Low operational and standby current. It's especially suitable for wooden, glass and metal doors.
Product Features
1. 100% brand new and high quality
2. Secure mode: NC model (Locked when power on, unlocked when power off)
3. Especially suitable for wooden/ glass/ metal/ secuirty doors.
4. It is made from durable and high aluminum alloy material, durable for use
5. Can be opened by push button, remote controller, etc.
6. Built-in reverse current protection device (MOV).
7. Holding force with 280KG(600Lbs). Suitable for wooden, glass, metal, security door.
Product Specifications
280KG Magnetic lock
Material: Aluminum alloy shell + iron plate
Holding force: 280KG/600lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Work for single door
ZL Bracket
Material Selection: High strength aluminum, sandblast finished
Suitable for Door: Inward door
Opening Mode: 90 degrees door
Use with: Magnetic lock series of 280kg/600Lbs
Finished for Shell: Anodized aluminum
Made of special aluminum, firm and durable
Special design, the inward door bracket is suitable for all kinds of the inward door
The best inward door bracket for access control
Size:
Z bracket 180*50*50mm
L bracket 252*42*28mm
Wiring Diagram
If you want to test the lock, please connect the red cable to "+12v", and black cable to "GND" of the 12VDC power supply.
When you install completed access control system kit set, please connect red cable to "NC", black cable to "COM" of the power supply.
Package Including:
1* 280KG magnetic Lock
1*ZL bracket for 280KG lock
1* installation kit
1* user manual
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
