Description

Module description:
Module Size: 50mm * 26mm * 18.5mm (L * W * H)
With four fixed bolt holes, holes 3.1mm, spacing 44.5mm * 20.5mm
Power Indicator (green), Relay Status Indicator (red)

Interface:
Input:
VCC: Relay power supply +
GND: Relay power supply -
IN: Signal trigger input (High or Low Level Signal, select via jumper)

Output:
NO: Relay normally open.
COM: Relay Common Pin
NC: Relay normally closed.

Package Included：
1*12V 1 Channel Relay Module With Optocoupler Isolation

How to provide an auto shut-down for Prusa i3 Mk2S?
1. Wired it in parallel with the power switch.
2. Use the hotend fan power as the trigger.
3. When you run a long print ,start the printer and when the hotend fan turns on (at about 50C) you can turn off the power switch.
4.The printer continues to run until the print is finished and the hotend cools below 50C. At that point the relay is no longer powered and the printer shuts itself off.

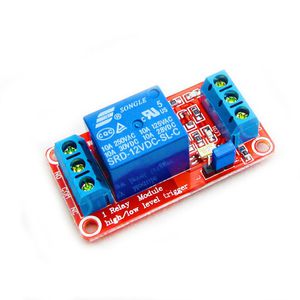

HiLetgo 12V 1 Channel Relay Module With Optocoupler Isolation Support High or Low Level Trigger

Current Price

$4.99

Average

$4.56

Min Price

$2.69

Max Price

$4.99

Price dynamics

9%

Description

Module description:
Module Size: 50mm * 26mm * 18.5mm (L * W * H)
With four fixed bolt holes, holes 3.1mm, spacing 44.5mm * 20.5mm
Power Indicator (green), Relay Status Indicator (red)

Interface:
Input:
VCC: Relay power supply +
GND: Relay power supply -
IN: Signal trigger input (High or Low Level Signal, select via jumper)

Output:
NO: Relay normally open.
COM: Relay Common Pin
NC: Relay normally closed.

Package Included：
1*12V 1 Channel Relay Module With Optocoupler Isolation

How to provide an auto shut-down for Prusa i3 Mk2S?
1. Wired it in parallel with the power switch.
2. Use the hotend fan power as the trigger.
3. When you run a long print ,start the printer and when the hotend fan turns on (at about 50C) you can turn off the power switch.
4.The printer continues to run until the print is finished and the hotend cools below 50C. At that point the relay is no longer powered and the printer shuts itself off.

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
