Description

Specification:
Material: Circuit board
Control signal: TTL
Rated load: AC125~250V/10A, DC28~30V/10A
Max. switch voltage: 250VAC, 30V
Trigger Voltage: 0-1.5V (LOW); 3-5V (High)
Trigger Current: 5mA
Max. Current: 190mA
Size: 50mm * 26mm * 18.5mm (1.9 inch *1.02 inch * 0.72 inch )

Input Connection:
DC +: Positive power supply (VCC)
DC-: Connect power negative ( GND)
IN: Control the pick up of replay by low level or high level

Output Connection:
Left Connection: "NO" means "Normally Open"
Middle Connection: "COM" means "Common"
Right Connection: "NC" means "Normally Closed"

High and Low Level Trigger Effective
High level trigger when the jumper cable connecting "High" to Short Circuit;
Low level trigger when the jumper cable connecting "Low" to Short Circuit;

LED Indicator Light:
Power Indicator: Green
Indicator of Relay Status: Red

100% Satisfaction Guarantee: 12-Month Warranty; No satisfied, Free reason for return; Quality problem, please contact us, we will resend your FREE Replacements or make you FULL Refund.

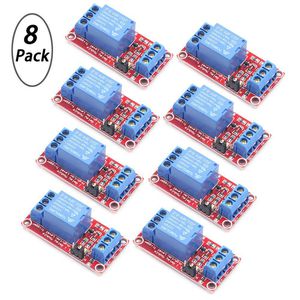

Youngneer 5v Relay Board Raspberry Arduino Relay Module 1 Channel Opto-Isolated High or Low Level Trigger

Price is below average

Current Price

$11.99

Average

$12.89

Min Price

$10.99

Max Price

$19.99

Price dynamics

7%

Description

Specification:
Material: Circuit board
Control signal: TTL
Rated load: AC125~250V/10A, DC28~30V/10A
Max. switch voltage: 250VAC, 30V
Trigger Voltage: 0-1.5V (LOW); 3-5V (High)
Trigger Current: 5mA
Max. Current: 190mA
Size: 50mm * 26mm * 18.5mm (1.9 inch *1.02 inch * 0.72 inch )

Input Connection:
DC +: Positive power supply (VCC)
DC-: Connect power negative ( GND)
IN: Control the pick up of replay by low level or high level

Output Connection:
Left Connection: "NO" means "Normally Open"
Middle Connection: "COM" means "Common"
Right Connection: "NC" means "Normally Closed"

High and Low Level Trigger Effective
High level trigger when the jumper cable connecting "High" to Short Circuit;
Low level trigger when the jumper cable connecting "Low" to Short Circuit;

LED Indicator Light:
Power Indicator: Green
Indicator of Relay Status: Red

100% Satisfaction Guarantee: 12-Month Warranty; No satisfied, Free reason for return; Quality problem, please contact us, we will resend your FREE Replacements or make you FULL Refund.
