Features:
Design without mechanical bolt.
Stainless steel panel with elegant style.
Tested to 1,000,000 cycles.
Three contact output, suitable for all kinds of locks.
The best choice for access control.
Specifications:
Dimensions: 114x70x25.7mm / 4.48x2.75x1.01in (L x W x H)
Input: DC12V
Contact Rating: 1A@30VDC,0.5A@125VAC
Output Contact: NO/NC/COM
Mechanical Life: 1,000,000 tested
Suitable for Door: Hollow Door
Operating temp: -20℃~+55℃(-14℉~131℉)
Suitable Humidity: 0-95% (relative humidity)
Detection range: 4-10cm(Adjustable)
Time delay: 0.5~25s(Adjustable)
White LED indicator: Power OFF
Red LED indicator: Power ON(standby)
Green LED indicator: Power ON(sensation)
Net Weight: 140g/4.94oz
Packages:
1 x Exit Button

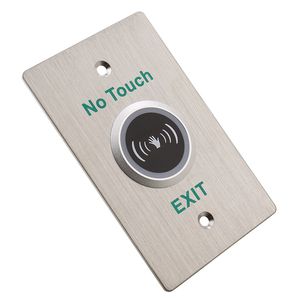

HWMATE Infrared Sensor Exit Button Door Release Unlock No Touch Exit Switch for Access Control Security System
Features:
Design without mechanical bolt.
Stainless steel panel with elegant style.
Tested to 1,000,000 cycles.
Three contact output, suitable for all kinds of locks.
The best choice for access control.
Specifications:
Dimensions: 114x70x25.7mm / 4.48x2.75x1.01in (L x W x H)
Input: DC12V
Contact Rating: 1A@30VDC,0.5A@125VAC
Output Contact: NO/NC/COM
Mechanical Life: 1,000,000 tested
Suitable for Door: Hollow Door
Operating temp: -20℃~+55℃(-14℉~131℉)
Suitable Humidity: 0-95% (relative humidity)
Detection range: 4-10cm(Adjustable)
Time delay: 0.5~25s(Adjustable)
White LED indicator: Power OFF
Red LED indicator: Power ON(standby)
Green LED indicator: Power ON(sensation)
Net Weight: 140g/4.94oz
Packages:
1 x Exit Button
