Advantage:
Design with no Mechanical Bolt.
Aluminum Panel with Elegant Style
500000 Cycles tests.
Two Contact Output,Suitable for all kinds of Locks.
The Best Choice for Access Control.
Technical Parameter:
Dimensions: 86Lx50Wx40.1H(mm) / 3.39"x1.97"x1.58"
Standard structure: 304 stainless steel panel with metal button
Current rating: 3A@36VDC Max
Output contact: NO/NC/COM
Mechanical life: 500000 tested
Suitable for door: All kinds of doors
Operating temp: -10℃~+55℃(14℉~131℉)
Operating humidity: 0-95% (relative humidity)
Panel Material: 304 stainless steel panel with wiredrawing finish
Back box finish: 304 stainless steel panel with wiredrawing finish
Weight: 0.18kg / 0.4lb
Package:
1 x Exit Button
1 x English manual

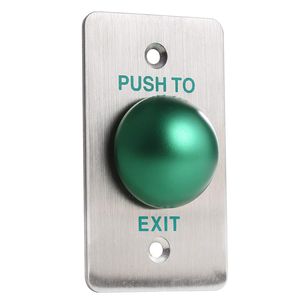

UHPPOTE Stainless Steel Panel Push to Exit Button for Door Access Control (Rectangle)
Advantage:
Design with no Mechanical Bolt.
Aluminum Panel with Elegant Style
500000 Cycles tests.
Two Contact Output,Suitable for all kinds of Locks.
The Best Choice for Access Control.
Technical Parameter:
Dimensions: 86Lx50Wx40.1H(mm) / 3.39"x1.97"x1.58"
Standard structure: 304 stainless steel panel with metal button
Current rating: 3A@36VDC Max
Output contact: NO/NC/COM
Mechanical life: 500000 tested
Suitable for door: All kinds of doors
Operating temp: -10℃~+55℃(14℉~131℉)
Operating humidity: 0-95% (relative humidity)
Panel Material: 304 stainless steel panel with wiredrawing finish
Back box finish: 304 stainless steel panel with wiredrawing finish
Weight: 0.18kg / 0.4lb
Package:
1 x Exit Button
1 x English manual
