Description

Icstation battery status tester module is designed to test the voltage, the capacity of the battery and display them with intuitive battery symbol and percentage. User can know the state of battery in time, it is suitable for 12V/24V/36V/48V/60V lead-acid battery and 1-19 in series lithium-iron battery,1-16 in series lead-acid battery, meet your various application. It is been designed for the instrument, measuring equipment, cleaning machine, balance car, battery car, vehicle, skateboard, e-bike and so forth.

Parameters:
1. Working voltage: Min 8V, Max 63V;
2. Working dissipation: 8 mA, Max 10 mA;
3. Sleep dissipation: 15 uA;
4. Voltage accuracy: ±3.0%;
5. Capacity accuracy: ±3.0%;
6. Backlight on current: 40 mA, Max 50 mA ;
7. Backlight off current: 30 mA, Max 40 mA ;
8. Temperature range: 0℃ - 35℃ ;
9. Size: 60x23x15 mm/2.34x1.0x0.6 inch, Weight: 15g.

Connection: The tester provides a connector consists of the plug, black line, and red line. Connect the black line to the negative, the red line to the positive, the plug to the socket of tester. Then, power on or turn on the switch, it will be work.

Install: First, open one rectangular orifice and two screw holes on the panel of the equipment. Then install the tester from the back of the panel, and put the prominent LCD in the rectangular orifice. Finally, fix the tester with tapping screws from the front of the panel.

Adjustment: Press and hold the down key on the back when turning off, then power on. LCD displays the present specifications. Use the down key and up key to adjust specification, select suitable specification you need, then turn off and power on. The tester will be work normally (correspond code a below form).

Attention: The tester cannot be exposed in the sun for a long time. When using or storing, please keep the temperature higher than -20℃ and lower than 60℃.

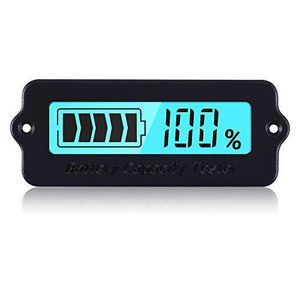

Icstation Voltage Capacity Tester Supports Lithium Battery 12V 24V 36V 48V 60V, Lithium-iron battery and Lead-acid Battery Status Indicator LCD Digital Power Monitor for Balance Car Vehicle Skateboard

Price is below average

Current Price

$9.99

Average

$10.15

Min Price

$8.55

Max Price

$12.49

Price dynamics

2%

Description

Icstation battery status tester module is designed to test the voltage, the capacity of the battery and display them with intuitive battery symbol and percentage. User can know the state of battery in time, it is suitable for 12V/24V/36V/48V/60V lead-acid battery and 1-19 in series lithium-iron battery,1-16 in series lead-acid battery, meet your various application. It is been designed for the instrument, measuring equipment, cleaning machine, balance car, battery car, vehicle, skateboard, e-bike and so forth.

Parameters:
1. Working voltage: Min 8V, Max 63V;
2. Working dissipation: 8 mA, Max 10 mA;
3. Sleep dissipation: 15 uA;
4. Voltage accuracy: ±3.0%;
5. Capacity accuracy: ±3.0%;
6. Backlight on current: 40 mA, Max 50 mA ;
7. Backlight off current: 30 mA, Max 40 mA ;
8. Temperature range: 0℃ - 35℃ ;
9. Size: 60x23x15 mm/2.34x1.0x0.6 inch, Weight: 15g.

Connection: The tester provides a connector consists of the plug, black line, and red line. Connect the black line to the negative, the red line to the positive, the plug to the socket of tester. Then, power on or turn on the switch, it will be work.

Install: First, open one rectangular orifice and two screw holes on the panel of the equipment. Then install the tester from the back of the panel, and put the prominent LCD in the rectangular orifice. Finally, fix the tester with tapping screws from the front of the panel.

Adjustment: Press and hold the down key on the back when turning off, then power on. LCD displays the present specifications. Use the down key and up key to adjust specification, select suitable specification you need, then turn off and power on. The tester will be work normally (correspond code a below form).

Attention: The tester cannot be exposed in the sun for a long time. When using or storing, please keep the temperature higher than -20℃ and lower than 60℃.
