Description
Features:
Power requirements: DC12V voltage (actual voltage 11-14V), current can not be less than 0.5A, otherwise the power supply will display an inappropriate Error. Discharge current: 0.20-9.99A stepper motor 0.1A or 0.01A, maximum error: 0.7%-0.01A. Maximum capacity test error: 0.5A 2.5%, 2A 1.5%, 5A and 1.2% or more offline (terminal) voltage range: 1.0-25.0V step 1V or 0.1V. Maximum voltage measurement error: 1% + - 0.02V. Maximum power: 60W super power automatically limits the maximum current (for example, when opening 3.00A, it can open 9.99A 6V and maximum 20V up to 60W). The highest battery test statistic: 999.9Ah or 9999Wh, the implementation value stops testing (the first value for the person who stopped the condition).
Specifications:
Material: PCB
Size: Approx. 10*7*5.7cm/3.94*2.76*2.24inch(Fan protrusion board Approx. 12mm/0.47inch)
Positioning hole position: 60mm*88mm/2.36*3.46inch diameter 3.2mm/0.13inch 5mm/0.20inch base has been installed
Discharge voltage: 1-30V
Working mode: single mode constant current(CC)
Package list:
1 x 60W Load Module
Note:
Does not include the default power adapter.
Power requirements: DC12V voltage (actual voltage 11-14V), current can not be less than 0.5A, otherwise the power supply will display an inappropriate Error. Discharge current: 0.20-9.99A stepper motor 0.1A or 0.01A, maximum error: 0.7%-0.01A. Maximum capacity test error: 0.5A 2.5%, 2A 1.5%, 5A and 1.2% or more offline (terminal) voltage range: 1.0-25.0V step 1V or 0.1V. Maximum voltage measurement error: 1% + - 0.02V. Maximum power: 60W super power automatically limits the maximum current (for example, when opening 3.00A, it can open 9.99A 6V and maximum 20V up to 60W). The highest battery test statistic: 999.9Ah or 9999Wh, the implementation value stops testing (the first value for the person who stopped the condition).
Specifications:
Material: PCB
Size: Approx. 10*7*5.7cm/3.94*2.76*2.24inch(Fan protrusion board Approx. 12mm/0.47inch)
Positioning hole position: 60mm*88mm/2.36*3.46inch diameter 3.2mm/0.13inch 5mm/0.20inch base has been installed
Discharge voltage: 1-30V
Working mode: single mode constant current(CC)
Package list:
1 x 60W Load Module
Note:
Does not include the default power adapter.

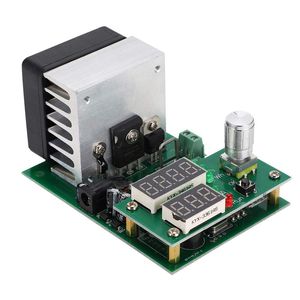

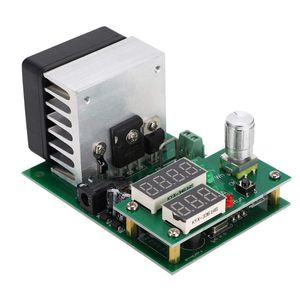

Load Battery Capacity Tester Module, DC12V Power Requirements 30V 60W Constant Current Electronic Load Module Battery Capacity Tester
