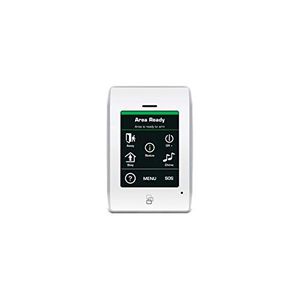

Interlogix NX-1820E NetworX Touch Screen Keypad, 3.5" Color Touch Screen, Icon-based Graphic Interface, Built-in Message Board, NetworX System Compatibility, 192-zone Capability, Modern Design

Ideal for almost any size application, the NetworX Touch Screen Keypad offers powerful yet simple control of any NetworX security system. An intuitive interface, 3.5" touch screen and Quick Keys for rapid system arming and status updates enable quick and easy system management

Users can record their own names for different system components and leave voice messages for others when arming or disarming. When a NetworX proximity card reader (NX-1700E) is installed, users can easily manage access cards and authority levels from the convenience of the keypad

• NetworX system compatibility
• 3.5" color touch screen, Icon-based graphic interface
• Quick Arm, Stay and Status keys
• Custom text naming for user names, areas, zones, outputs and rooms
• Access card management (when card reader NX-1700E is installed
• Built-in message board, Customizable chime groups for specific zones
• Support for up to 99 users, 8 partitions and 16 outputs
• Streamlined, modern design
• 192-zone capability

• Compatibility: Interlogix NetworX control panels (NX-4, NX-6, NX-8, NX-8E)
• User Interface: Intuitive graphical interactive encased in a 3.5" color TFT LCD screen
• Language: English
• Operating Voltage: 12VDC Regulated, supplied from control panel
• Current: 110mA nominal, 140mA max
• Wiring: NetworX 3-wire data/communication bus
• Operating temperature: 32°F to 122°F (0°C to 50°C)
• Dimensions (WxHxD): 3.2" x 4.9" x 0.7"
• Color: Opal White with silver frame
