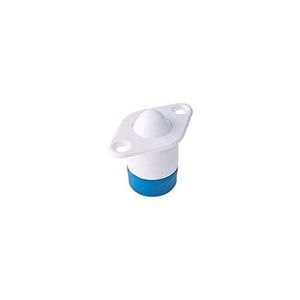

iON Digital Plunger Wireless Door Security Sensor, GE (Plunger-G)

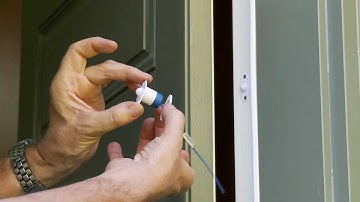

we're here to show how easy it is to install an ion plunger switch the first thing we do is locate a spot about halfway between the top and middle hinge and using a 3/4 inch wood bit we drill a hole one inch into the doorframe now using a quarter inch bit we drill about seven inches into the hollow space of the wall for the antenna GE sensors are learned into the system when the battery is inserted in a tamper single ascent out so you'll want to do this before installing it this also shows how easy it is to insert the battery and how field replacements can be made if necessary because there can be insulation in the wall we supply a plastic straw to use as an antenna guide simply roll up the label so we'll slide into the straw and then insert the entire unit into the hole this will keep the antenna nice and straight for superior range now we line up the plunger so it's nice and straight
