Notes: Both The Indoor Monitor And The Doorbell Can be Powered By The Switch,With POE Function.

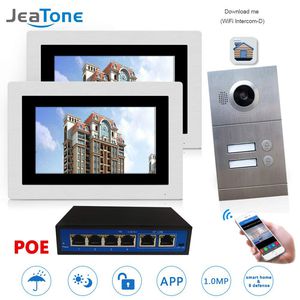

2 Monitor 1 Camera

Features:

♦ Digital system, use CAT5 network cable
♦ Monitor nobody receive call within 30s, the call will transfer to smart phone; or visitor leave a message for 40s transfer to smart phone
♦ Duplex communication
♦ Same flat or different flat support monitor call monitor
♦ PC port work as administrate machine, call for any monitor
♦ 8 smart home security zone
♦ Machine to machine use TCP/IP protocol, machine to smart phone use SIP protocol
♦ Support setting un-lock time, suitable for different electronic lock
♦ Max. support 3 smart phone to unlock the door account (never miss your call)
♦ Special design rubber for waterproof
♦RFID card&code access

Descriptions:
Indoor Monitor:7" TFT touch screen
Resolution:1024(H)*3(RGB)*600(V)
Leave Message Time:30s/60s/90s optional
Conversation Duration:Max.180s
Power Consumption:400mA Max.
Power Supply: External Power DC 12V
Memory: Support Max.32GB SD card
Material: Wire drawing aluminum case
Operation Temp:-40℃ +50℃

Outdoor Camera:
Camera Sensor:1.0MP
View Angle:110º Wide Angle Lens
LEDs For Night Vision: 6 pcs LED
Power Consumption:200mA Max.
Dimension:210mm*116mm*48mm
Material:Aluminium alloy
Power Consumption:200mA Max.

Package Included:
2x Indoor Monitor;Monitor Mounting Plate
2x Power Adapter
10x 200mm 4 Pin Connector
1x Outdoor Call Panel; Call Panel Mounting Plate
2x 200mm 2 Pin Connector
1x Rain Cover
1x 4 ports Switch(with POE)
