Technical Parameters:
Material: Aluminum alloy
Load capacity: 750N/160LBS
Input Voltage: 12V DC
Speed: 10mm/s
Stroke Length:50mm/2 inch
Working frequency: 20%
Rated power: 20W, maximum 30W.
Push bar Each side contains a travel limit switch. When the telescopic bar runs to the top or to the top, it will automatically disconnect the electricity.
The motor will not idle. Cut off the power, it can be stop at any position, with self-locking function.
The push rod is driven by a DC motor with a screw drive. The telescopic rod can only be retracted without rotation.
The motor is positive and negative. For example, if the positive electrode is stretched and the negative electrode is shrunk, the telescopic direction of the rod can be changed by changing it.
Ambient temperature -20°C to +75°C.
Standard protection class: IP54.
Low noise design, noise level less than 42dB.
Please do not disassemble the machine.
Product features: drive other objects to push, pull, rise, drop.
Product Applications: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more.
Package Included:

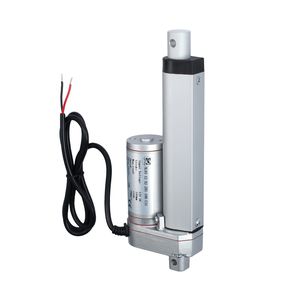

1×Linear Actuator Motor
Justech 100mm Linear Actuator Motor Heavy Duty 750N DC 12V for Auto Car RV Electric Door Opener Industrial Agricultural Machinery Clean Sweeping Vehicles Vessels Cargo Medical Window
Technical Parameters:
Material: Aluminum alloy
Load capacity: 750N/160LBS
Input Voltage: 12V DC
Speed: 10mm/s
Stroke Length:50mm/2 inch
Working frequency: 20%
Rated power: 20W, maximum 30W.
Push bar Each side contains a travel limit switch. When the telescopic bar runs to the top or to the top, it will automatically disconnect the electricity.
The motor will not idle. Cut off the power, it can be stop at any position, with self-locking function.
The push rod is driven by a DC motor with a screw drive. The telescopic rod can only be retracted without rotation.
The motor is positive and negative. For example, if the positive electrode is stretched and the negative electrode is shrunk, the telescopic direction of the rod can be changed by changing it.
Ambient temperature -20°C to +75°C.
Standard protection class: IP54.
Low noise design, noise level less than 42dB.
Please do not disassemble the machine.
Product features: drive other objects to push, pull, rise, drop.
Product Applications: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more.
Package Included:
1×Linear Actuator Motor
