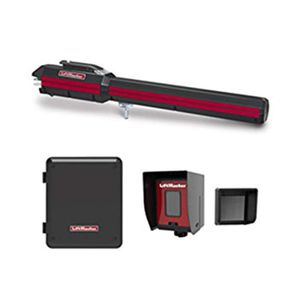

Liftmaster LA500PKGU 24VDC Residential/Light Commercial Linear Actuator Kit - Included Liftmaster 828LM Internet Gateway!

Our most powerful swing gate operator delivers unsurpassed performance and secure access to your property.

Includes:

One Arm
Battery Backup with control board
Photocell
828LM Internet Gateway

Liftmaster LA500PKGU Features:

LED DIAGNOSTIC DISPLAY -Simplifies installation and troubleshooting.
SOLAR-READY ULTRA-RELIABLE SYSTEM - Simple solar conversion delivers power when you need it most and is extremely power efficient at all other times to maximize solar performance.
BI-PART DELAY - Monitors and adjusts speed and position of each wing to ensure primary gate closes last.

Liftmaster LA500PKGU Specifications:

POWER - Full-time AC-run operation 120V/230V Single Phase.
ACCESSORY POWER - 24VDC 500mA output. Switched and unswitched power.
MONITORED SAFETY INPUTS - 3 Main Board, 3 Expansion Board.
TEMPERATURE SPECIFICATIONS - -4°F (-20°C) to 140°F (60°C).
UL USAGE CLASSIFICATION - I, II, III, and IV.
GATE TRAVEL SPEED - 90-degree opening in 15-17 seconds.s

Construction:

P3 MOTOR - 24VDC continuous-duty motor.
OPERATOR DUTY RATING - Continuous duty, 300 cycles per day.
CHASSIS - Commercial-duty aluminum die-cast housing.
WORM GEAR REDUCTION - Precision-machined all-metal gear in contained lubrication housing.
OPERATOR WEIGHT - Actuator arm 35 lbs. Standard control box 13 lbs.
Includes (2) 7Ah batteries.
RECOMMENDED CAPACITIES - Rated for gates up to 18 ft. in length or weighing up to 1,600 lbs.
