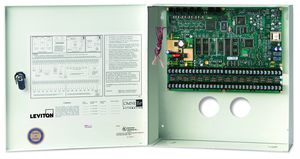

Leviton 20A00-50 Omni IIe Controller in Enclosure

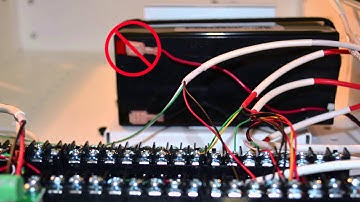

if installing the 2800 - 70 use the provided accessory pack and perform the following one position the controller on backplate in the desired location within the structured wiring kit - using the supplied pushpins secure the four corners of the backplate to the structured wiring can note on some structured wiring cans it may be necessary to use the pre-cut tabs as opposed to the pushpins for securing the backplate three using 14 gauge wire connect the Omni LTE's earth ground terminal the first terminal in a top terminal strip to a cold water pipe or to a ground rod that is at least four feet long this is to preserve built-in transient protection note the grounding method must be in accordance with the National Electric Code transit protection will not work if the omni LTE is improperly grounded for using 18 to wire connect a 24v AC for TV a transformer to the 24 v AC input terminals the
