MARATHON EPBAP74 ENCLOSED POWER BLOCK

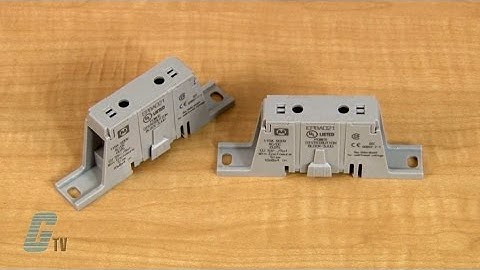

Welcome to G-TV! Today I will be showing you Marathon Specialty Products EPB Enclosed Power Distribution Blocks. The EPB series is an enclosed power block that is housed in a gray thermoplastic material rated with a finger safe IP20 degree of protection. They have an electrical rating of 600 volts for UL standards and up to 580 amps. There are 4 line and load connector configurations available with up to 8 openings per pole on the load side. The connector wire sizes can be from 2 to 14 gauge wire, 2 ought to 14 gauge, 250 kcmil to 6 gauge and 400 kcmil to 6 gauge. Units are available with options to be panel or DIN rail mountable. They are UL recognized, CSA certified and CE marked. They also have a flammability rating of UL 94 V-0 and are rated for up to 255 degrees Fahrenheit. Marathon Specialty Products EPB Enclosed Power Distribution Blocks along with thousands of other products and
