Description
Specification:
Operating voltage: 4-28V
Output Voltage Driving Capacity:100mA
Quantity:2pcs
Detection Distance(Min-Max):5-9m
Output Control Low Level:0V
Output voltage: 3.3V
Operating Temperature:-20~80 centigrade
Storage Temperature:-40~100 centigrade
RCWL-0516 module is a microwave induction module specially designed to detect the movement of objects.
Dedicated signal processing control chip RCWL-9196
Compared with traditional infrared-sensing PIR, it has penetration detection capability.
Blocking time, adjustable distance
Adjustment part description:
1.C-TM
Adjust repeat trigger time,default trigger time is 2s;increasing capacitor's capacity will make repeat trigger time longer;and actual counting trigger time can operate as below:
Stick capacitor on C-TM,test 9196 3-pin frequency F,repeat trigger time T=(1/f)*32768
2.R-GN
Detection distance adjustment, the resistance is connected, the detection distance becomes smaller, the detection distance is not about 7M, and the 1M resistance is connected. The detection distance is about 5M, and the customer can adjust according to the actual situation.
3.R-CDS
The internal VCC is connected in parallel with the internal 1M resistor to the CDS pin (ie, 9 pin of 9196) through the R-CDS. The CDS is connected to the photoresistor to turn off the module detection function at night. The R-CDS value can be set according to the ambient brightness required by the actual situation.
Operating voltage: 4-28V
Output Voltage Driving Capacity:100mA
Quantity:2pcs
Detection Distance(Min-Max):5-9m
Output Control Low Level:0V
Output voltage: 3.3V
Operating Temperature:-20~80 centigrade
Storage Temperature:-40~100 centigrade
RCWL-0516 module is a microwave induction module specially designed to detect the movement of objects.
Dedicated signal processing control chip RCWL-9196
Compared with traditional infrared-sensing PIR, it has penetration detection capability.
Blocking time, adjustable distance
Adjustment part description:
1.C-TM
Adjust repeat trigger time,default trigger time is 2s;increasing capacitor's capacity will make repeat trigger time longer;and actual counting trigger time can operate as below:
Stick capacitor on C-TM,test 9196 3-pin frequency F,repeat trigger time T=(1/f)*32768
2.R-GN
Detection distance adjustment, the resistance is connected, the detection distance becomes smaller, the detection distance is not about 7M, and the 1M resistance is connected. The detection distance is about 5M, and the customer can adjust according to the actual situation.
3.R-CDS
The internal VCC is connected in parallel with the internal 1M resistor to the CDS pin (ie, 9 pin of 9196) through the R-CDS. The CDS is connected to the photoresistor to turn off the module detection function at night. The R-CDS value can be set according to the ambient brightness required by the actual situation.

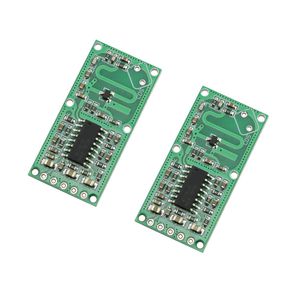

Maxmoral 2-Pack RCWL-0516 Microwave Radar Sensor Switch Module for Human Body Induction,Intelligent Detection Detector 3.3V Output
Current Price
$5.99
Average
$5.99
Min Price
$5.99
Max Price
$5.99
Description
Specification:
Operating voltage: 4-28V
Output Voltage Driving Capacity:100mA
Quantity:2pcs
Detection Distance(Min-Max):5-9m
Output Control Low Level:0V
Output voltage: 3.3V
Operating Temperature:-20~80 centigrade
Storage Temperature:-40~100 centigrade
RCWL-0516 module is a microwave induction module specially designed to detect the movement of objects.
Dedicated signal processing control chip RCWL-9196
Compared with traditional infrared-sensing PIR, it has penetration detection capability.
Blocking time, adjustable distance
Adjustment part description:
1.C-TM
Adjust repeat trigger time,default trigger time is 2s;increasing capacitor's capacity will make repeat trigger time longer;and actual counting trigger time can operate as below:
Stick capacitor on C-TM,test 9196 3-pin frequency F,repeat trigger time T=(1/f)*32768
2.R-GN
Detection distance adjustment, the resistance is connected, the detection distance becomes smaller, the detection distance is not about 7M, and the 1M resistance is connected. The detection distance is about 5M, and the customer can adjust according to the actual situation.
3.R-CDS
The internal VCC is connected in parallel with the internal 1M resistor to the CDS pin (ie, 9 pin of 9196) through the R-CDS. The CDS is connected to the photoresistor to turn off the module detection function at night. The R-CDS value can be set according to the ambient brightness required by the actual situation.
Operating voltage: 4-28V
Output Voltage Driving Capacity:100mA
Quantity:2pcs
Detection Distance(Min-Max):5-9m
Output Control Low Level:0V
Output voltage: 3.3V
Operating Temperature:-20~80 centigrade
Storage Temperature:-40~100 centigrade
RCWL-0516 module is a microwave induction module specially designed to detect the movement of objects.
Dedicated signal processing control chip RCWL-9196
Compared with traditional infrared-sensing PIR, it has penetration detection capability.
Blocking time, adjustable distance
Adjustment part description:
1.C-TM
Adjust repeat trigger time,default trigger time is 2s;increasing capacitor's capacity will make repeat trigger time longer;and actual counting trigger time can operate as below:
Stick capacitor on C-TM,test 9196 3-pin frequency F,repeat trigger time T=(1/f)*32768
2.R-GN
Detection distance adjustment, the resistance is connected, the detection distance becomes smaller, the detection distance is not about 7M, and the 1M resistance is connected. The detection distance is about 5M, and the customer can adjust according to the actual situation.
3.R-CDS
The internal VCC is connected in parallel with the internal 1M resistor to the CDS pin (ie, 9 pin of 9196) through the R-CDS. The CDS is connected to the photoresistor to turn off the module detection function at night. The R-CDS value can be set according to the ambient brightness required by the actual situation.
