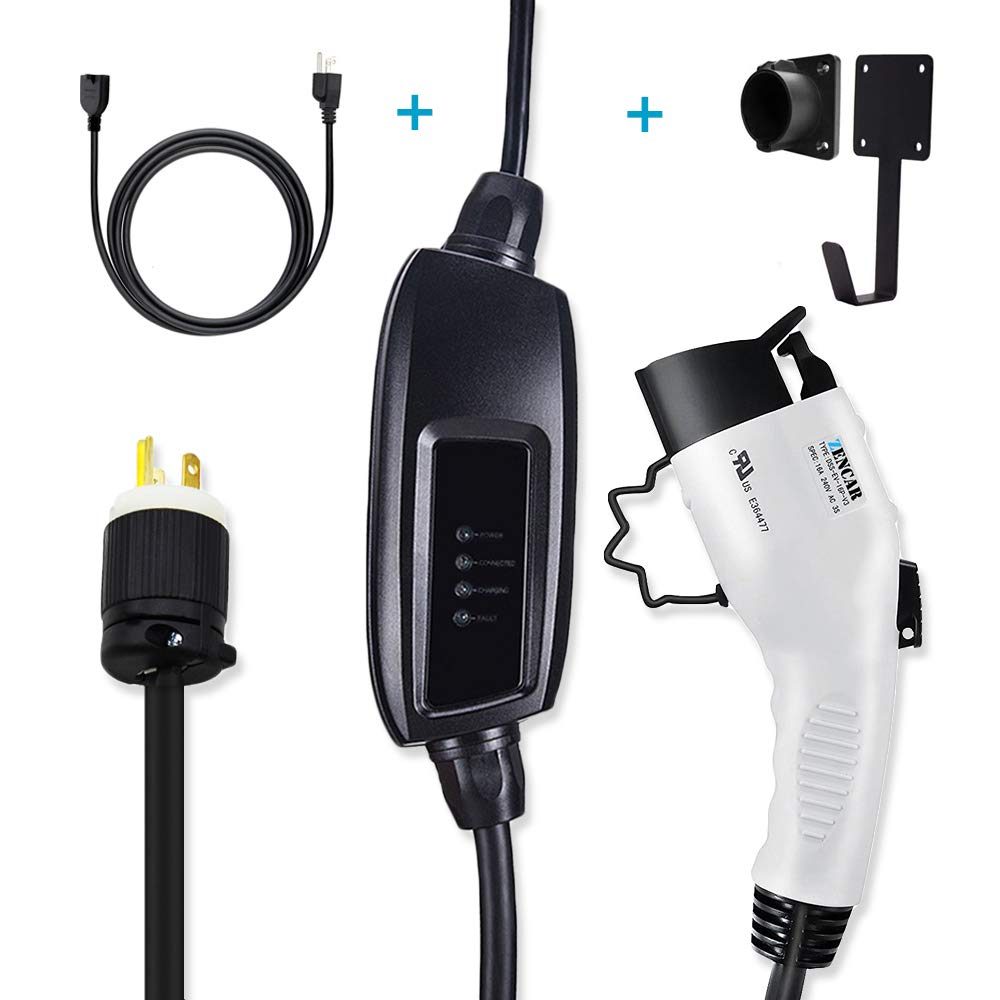

The charge cable measures 25 feet from plug to plug.It is a compact portable EV charging station that is an ideal solution for low-cost charging in your garage or to keep in the trunk of yourEV for charging at work or on trips.The charger features a control box with LED sindicating thestatus of the charge.

Features

Charging plug meet SAE J1772 2010 standard

Power plug meet NEMA 6-20 standard

Control box meet SAE J1772 2010 control principle

Excellent protection performance, protection grade IP55 -working condition

Environmental Performance

Operating temperature: -22°F to 122°F

Mechanical Properties

Mechanical life: no-load plug in/pull out: 10000times

Impact of external force: can afford 1m drop and 2t vehicle runover pressure

Electric Performance

Rated current and voltage: 220V AC 16A

Output Power: 3.8KW

Insulation resistance: 1000MΩ(DC500V)

Terminal temperature rise: 50K

Control Box Function

Leakage protection (restart recover)

Over-voltage and under-voltage protection (self-checking recover)

Lightning protection

Charger Cord

Length: 25 feet

Diameter: 0.472 inches

 Warranty

All our product sale produced under strict quality Inspection

24-Month warranty and life-time hassle-free Technical Support

Professional After-sales Team to make things right within 24hrs

Car models is known to work well with

Tesla Model S, Tesla Model X, NissanLEAF, BMW i series, ChevyVolt, Chevy Bolt, Fiat 500e, Ford C-Max Energi,Ford Focus Electric, Ford FusionEnergi,

Honda Accord Plug-in Hybrid, Kia Soul EV, Mercedes B-ClassElectric Drive, Mitsubishi i-MiEV,Porsche Plug-inHybrids, Smart Electric Drive,

Toyota Prius Plug-in Hybrid, Volkswagen E-Golf.
