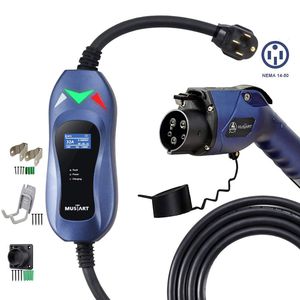

Charger Cord

• Length: 25 feet

Meets Standards

• SAE J1772
• IEC 62196-2

Electric Performance

• Rate current and voltage: 240V AC 32A
• Output Power: 7.68KW
• Insulation resistance: > 1000MG(DC500V)
• Terminal temperature rise: <50K

Control Box Function

• Leakage protection (restart recover)
• Under-voltage protection (self-checking recover)
• Lightning protection
• Dust and Water Ingress Protection Rating (IP): IP54, recommend indoor use.
• Overvoltage,overheat and overcurrent protection.

User Tips

• If the product detects that the voltage is unstable, or the current is too high, or the temperature is too high, the protection system will stop the charging and the plug or the connector should be replanted.
• STOP charging the vehicle when it is raining and store away the EV charger (if you have to use it outdoors). The leakage protection would stop working if it gets water into it and cause burning.
• Carefully check the maximum AC charging current and MAX AC CHARGING POWER (KW) of your vehicle before purchase.
