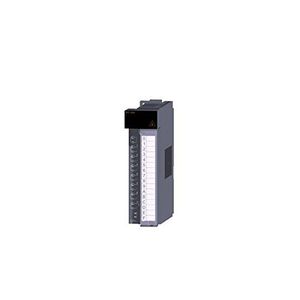

MITSUBISHI ELECTRIC QY50 Digital Output Modules (High Current Sink Transistor Type Output)(16 Points) NN

in this video we're going to talk about syncing and sourcing plc digital output modules and how they connect to field devices as we've discussed in our other videos the two types of plc output modules are digital and analog drilling down even further digital output modules can be solid state or dry relay the focus of our video is on solid-state output modules operating dc loads the purpose of a plc digital output module is to operate or control a dc voltage physical device based on field device conditions connected to an input module and decisions made by the plc program if you've been in the instrumentation and automation field for any length of time you have quite likely heard the terms sinking and sourcing let's spend some time clearing up any misconceptions you might have about these terms here's a tip for you it's all about conventional current flow when we talk about syncing and s
