Features and Benefit

　　Expands 2 port RS232 for system

　　Expands 1 port Parallel for system

　　Communicate efficiently with connected device up to high-speed 921Kbps support

　　PCIe base specification 3.0/3.1 compliant backward compliant 1.0a / 1.1 / 2.0 / 2.1

　　Protect your system from damage with integrated ESD Protection

　　Support Industrial Serial Card Specification

　　Power connected serial devices with pin 1 or pin 9 flexible power output by jumper setting

　　Support Microsoft Windows, Linux, drivers

Specification

　Hardware

　　Communication controller: 16C550 UART Compatible register Set

　　Bus: PCI Express x 1

　　Connector: DB44F x 1

　Interface

　　Number of ports: 3 ports

　　Serial Standard: RS232 x2

　　Parallel: Parallel x 1

　Serial Line Protection

　　ESD Protection: 15KV ESD Protection for all signals

　Performance

　　Baud rate: up to 921.6 Kbps

　　FIFOs: 256 byte

　Serial Communication Parameters

　　Data Bits: 5, 6, 7, 8

　　Stop Bits: 1, 1.5, 2

　　Parity: None, Even, Odd, Space, Mark

　　Flow Control: RTS/CTS, XON/XOFF

　Parallel

　　IEEE Standard 1284 Protocols(compatibility Mode, Nibble Mode, Byte Mode, EPP Mode, and ECP Mode)

　　16byte EPP/ECP Mode

　Serial Signals

　　RS232: TxD, RxD, RTS, CTS, DTR, DSR, 5V/12V/DCD(selectable), GND, 5V/12V/RI(selectable)

　Physical Characteristics

　　Bracket: Standard and Low Profile Bracket

　　Bracket Space: 1

Package Content

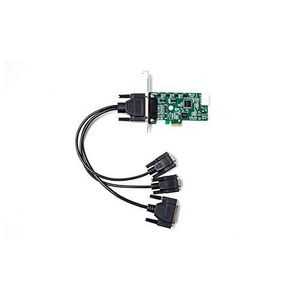

　　2 port RS232 + 1 port Parallel PCIe Card x 1

　　DB44F to DB9M x 2 + DB25F x 1 Cable 30cm x 1

　　Low Profile Bracket x 1

　　Quick Instill Guide x 1

　　Driver CD x 1
