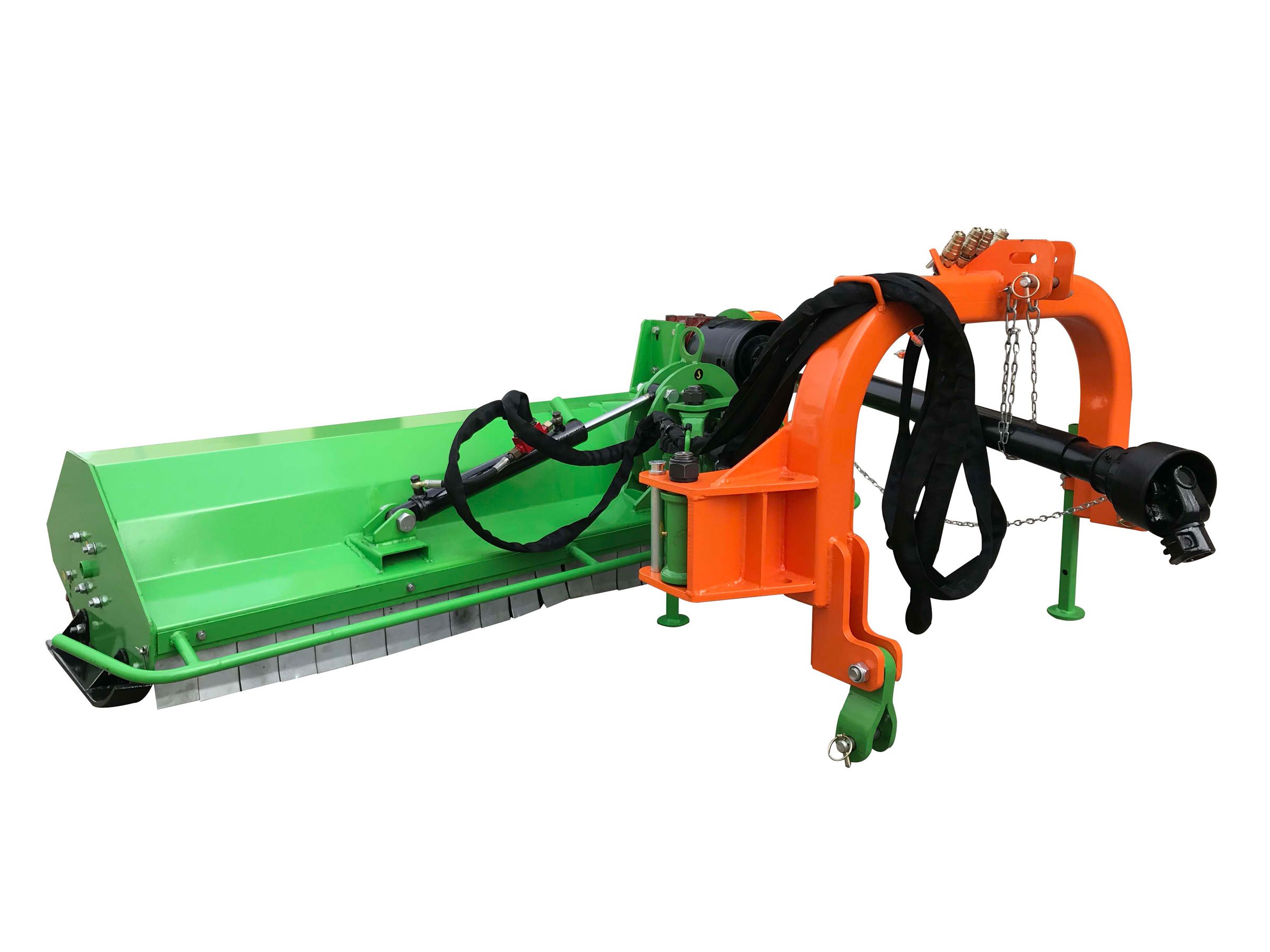

Nova BCRM175 middle duty ditch mower with 28 pcs 800gr/1.76 lbs flail hammers, for small compact tractors from 45hp to 60hp engines with Cat. I 3-point hitches, working width is 1750mm/68inch, 43inch hydraulic side-shift capacity, mowing range angle from -60° to +90°, the maximum distance from the middle of the tractor to the right side of the mower is 94 inch.
Technical Data----------------- BCRM175
Dimensions (LxWxH)----------- 67x75x24inch
total weight--------------------985lbs
cutting width------------------- 681inch
side shift capacity------------------ 43inch
slope mowing angle------------------ -60°to 90°
adjustable mowing height---- 0.75 - 2.95inch
3-point hitch-------------------Cat I
PTO shaft, clockwise---------- 540 RPM
PTO shaft length---------------- 59inch
working efficiency
per hour(approx.)--------------- 1.7- 3.4acre
drive system-------------------- 4 belt system
recommended tractor HP------ 45-60hp / 34-45kw
flail shaft cover thickness----- 4mm / 0.15inch
side walls thickness------------ 6mm / 0.23inch
painting------------------------ powder coating
flail form----------------------- forged steel hammer
number of flails---------------- 28
weight per flail---------------- 800gram / 1.76lb
RPM of flail shaft-------------- 2200RPM
wooden transport box (LxWxH)---- 182x92x82inch
For more information of specification, welcome to visit manufacturer's website: www.novatractor.com
For detail Warranty policy please visit: http://novatractor.com/warranty
Nova Tractor 68" Middle Duty Ditch Bank Flail Mower BCRM175, for Tractor 30 to 40 HP, 3pt Cat I
Nova BCRM175 middle duty ditch mower with 28 pcs 800gr/1.76 lbs flail hammers, for small compact tractors from 45hp to 60hp engines with Cat. I 3-point hitches, working width is 1750mm/68inch, 43inch hydraulic side-shift capacity, mowing range angle from -60° to +90°, the maximum distance from the middle of the tractor to the right side of the mower is 94 inch.
Technical Data----------------- BCRM175
Dimensions (LxWxH)----------- 67x75x24inch
total weight--------------------985lbs
cutting width------------------- 681inch
side shift capacity------------------ 43inch
slope mowing angle------------------ -60°to 90°
adjustable mowing height---- 0.75 - 2.95inch
3-point hitch-------------------Cat I
PTO shaft, clockwise---------- 540 RPM
PTO shaft length---------------- 59inch
working efficiency
per hour(approx.)--------------- 1.7- 3.4acre
drive system-------------------- 4 belt system
recommended tractor HP------ 45-60hp / 34-45kw
flail shaft cover thickness----- 4mm / 0.15inch
side walls thickness------------ 6mm / 0.23inch
painting------------------------ powder coating
flail form----------------------- forged steel hammer
number of flails---------------- 28
weight per flail---------------- 800gram / 1.76lb
RPM of flail shaft-------------- 2200RPM
wooden transport box (LxWxH)---- 182x92x82inch
For more information of specification, welcome to visit manufacturer's website: www.novatractor.com
For detail Warranty policy please visit: http://novatractor.com/warranty
