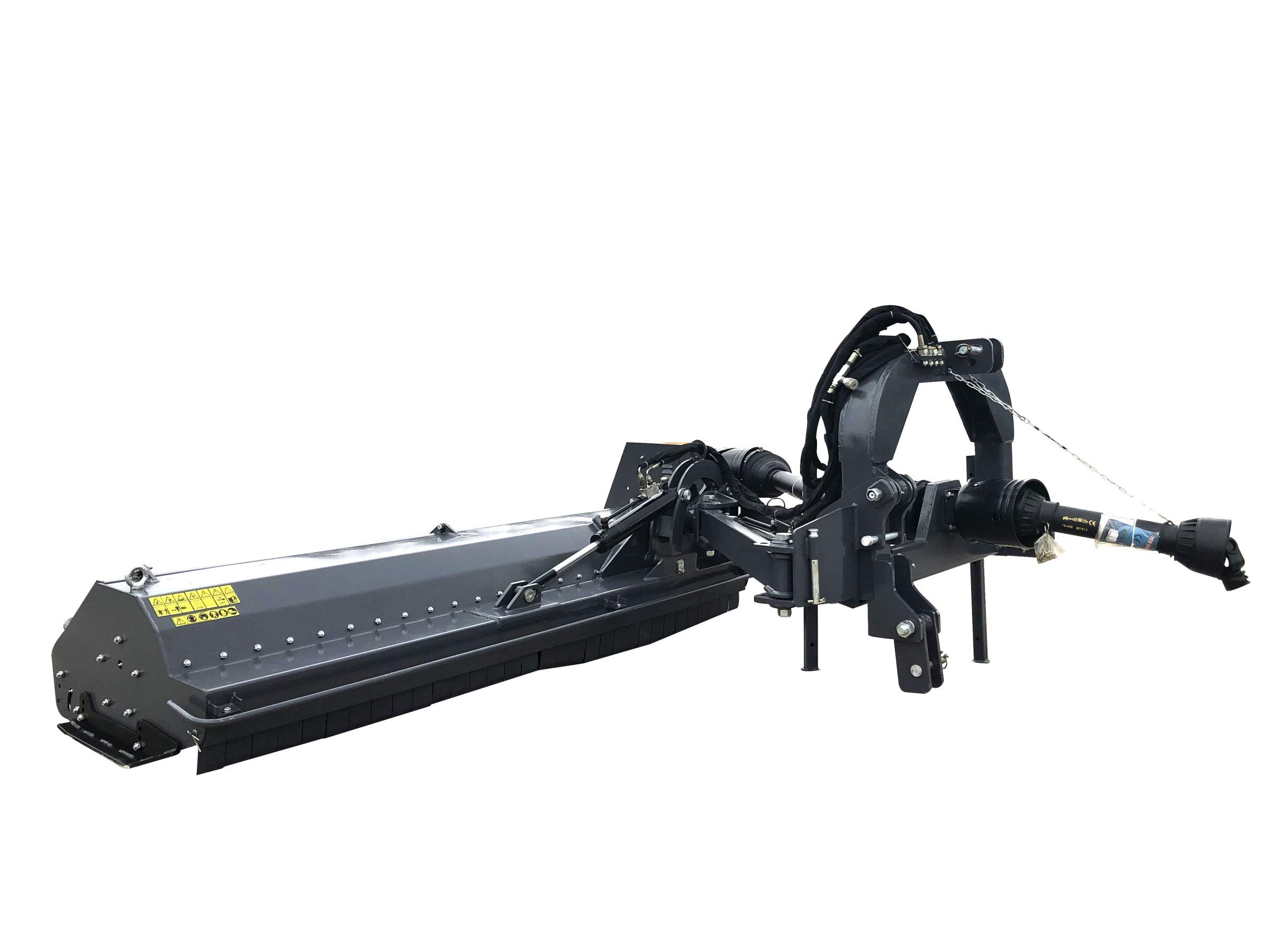

Nova Tractor BCRI220 heavy duty ditch mower with 20 pcs 2.8lbs flail hammers, for medium and big tractors from 60hp to 90hp engines with Cat. II 3-point hitches, working width is 86inch, 60inch hydraulic side-shift capacity, mowing range angle from -60° to +90°, the maximum distance from the middle of the tractor to the right side of the mower is 134 inch.

Nova Tractor BCRI220 is with very strong frame and 3 point hitch for stability, through the application of two PTO shafts (a long shaft with a wide angle), it is possible to work in every position without the risk of damaging a PTO shaft.

The rear gate make it very easy to maintain the hammers and rotor shaft.

Technical Data-----------------BCRI-220
Dimensions (LxWxH)-----------98x57x30inch
total weight--------------------1574lbs
cutting width-------------------86inch
side shift capacity------------------60inch
slope mowing angle------------------ -60°to 90°
adjustable mowing height----0.75 - 2.95inch
3-point hitch-------------------Cat II
PTO shaft, clockwise----------540 RPM
PTO shaft length---------------- 70inch (first PTO shaft)+ 59inch (wide angle PTO shaft)
working efficiency
per hour(approx.)---------------1.7- 4.4acre
drive system--------------------4 belt system
recommended tractor HP------60-90hp / 44-66KW
flail shaft cover thickness-----4mm / 0.15inch
side walls thickness------------6mm / 0.23inch
painting------------------------powder coating
flail form-----------------------forged steel hammer
number of flails----------------20
weight per flail----------------1300gram / 2.8lb
RPM of flail shaft--------------2150RPM
wooden transport box (LxWxH)----111x44x36inch

For more information of specification, welcome to visit manufacturer's website: www.novatractor.com
