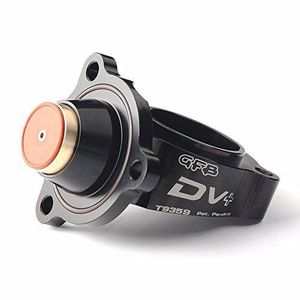

Go Fast Bits T9359 DV+ diverter valve with TMS advantage. by GFB

[Music] hey this is Bret from GFB in this video we're going to install a DV plus on this Audi s3 now this is an 8 V model same as the mark 7 Golf R this is the new DV plus we've designed for it part number 10902 mike 7 GTI the clearance between the diverter valve and the pipe here is a lot smaller than it is on the the models with the KR 3 turbo so what we've done with the DV plus well this particular model is we've put the solenoid at right angles to the valve body itself so what it does is it's the solenoid valve up right and gives us the clearance we need to this intake pipe down here so starting off I'm going to remove the engine cover which is pretty straightforward just pop it off the rubber grommets now all we have to do is pull the intake pipe off this plastic turbo intake tube and then we can get up the bolts holding the diverter valve on there you can get the valve off without
