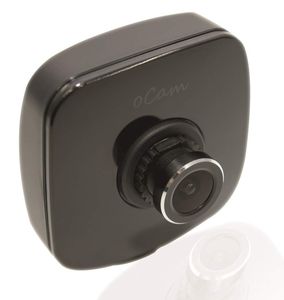

oCam-1MGN-U is a 1 mega pixels global shutter mono camera.
It has SuperSpeed USB 3.0 interface and supports UVC for easy integration to many kinds of host systems without installing special drivers.
The camera provides a standard M12 lens holder to be used with many kinds of interchangeable M12 lenses for various applications.

Specifications

• Sensor : OnSemi AR0135 CMOS Mono image sensor
• Sensor Size : 1/3 inch
• Interface : USB 3.0 Super-Speed
• Lens : M12 (Focal length 3.6mm)
• Supported OS : Windows10, Linux, Plug-and play by UVC(USB Video Class) protocol
• Power : USB Bus Power
• Operation Temperature : 0°C ~ + 70°C
• Rating : DC 5V / 180mA
• Shutter : Electric Global Shutter
• Field Of View(FOV) : 50˚(V) x 92.8˚(H) x 110˚(D) (default Lens)
• Camera Control :
  • Manual Exposure Control
  • Brightness Control
• Frame Rate : 1280x960 @54fps, 1280x720 @60fps, 640x480 @100fps, 320x240 @180fps
• Weight : 0.06lb(27.2gram, including case)
• PCB Size : 1.5 x 1.5inch(39x39mm)
• Size : 1.9 x 2.1 x 0.8inch (49x53x20mm)

More Information

• http://withrobot.com/en/camera/ocam-1mgn-u/
• https://github.com/withrobot/oCam
• https://www.youtube.com/watch?v=OxbYWC3tylM&feature=youtu.be
