Description

Specification:
Working Current: 13-26mA/DC 3.3V
Idle Current: 10-13mA / DC 3.3V
Sleep Current: <80uA
Peak Current: <30mA
Working Frequency: 13.56MHz
Supported Card Types: for mifare1 S50, mifare1 S70, mifare Pro, mifare Desfire
Module Size: 60 * 40mm/2.36 * 1.57inches(L * W)
Environmental Working Temperature: -20-80 degrees Celsius
Environmental Storage Temperature: -40-85 degrees Celsius
Relative Humidity: 5%-95%

Feature:
MF RC522 is a high-integration read-write card chip used in 13.56MHz contactless communication.
It is a low-voltage, low-cost, small-sized contactless card reader chip introduced by NXP for "three-table" applications.
It is a better choice for the development of smart meters and portable handheld devices.
The MF RC522 utilizes advanced modulation and demodulation concepts and fully integrates all types of passive contactless communication methods and protocols at 13.56 MHz.
Supports 14443A compatible transponder signals.
The digital part handles ISO14443A frame and error detection. In addition, it supports the fast CRYPTO1 encryption algorithm and verifies the MIFARE series of products.
The MFRC522 supports the MIFARE series of higher speed contactless communication with bidirectional data rates up to 424 kbit/s.
The MF RC522 has many similarities with the MF RC500 and MF RC530, as well as many features and differences. It uses SPI mode for communication with the host, which helps to reduce wiring, reduce PCB board size and reduce cost.

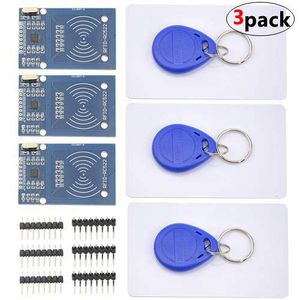

Package Content:
3 x RFID-RC522 Module
3 x The Standard S50 Blank Card
3 x S50 Card
3 x Straight Pin
3 x Curved Pin

WMYCONGCONG 3 PCS RC522 RFID Kit Including RF IC Card Sensor Module S50 White Card Key Ring for Arduino Raspberry Pi
