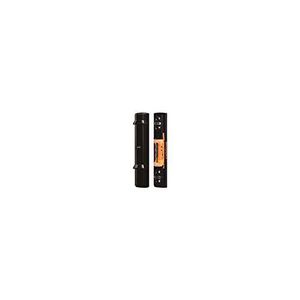

Optex SL-200QN

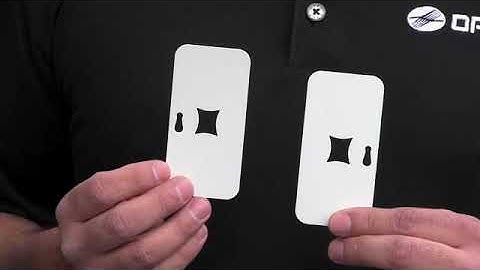

hi my name is frank chavez lead tech here at optics right now you've installed your towers so today what we'll do is take you through the alignment and programming process the tools needed for the alignment process will be your blocking plates which are included in the accessory box along with the towers and also you'll need a bolt meter for the fine tune start the alignment process by aligning the top set of beam heads first to do this place the beam blocking plate the bottom set of beam heads when using the sniper viewfinder make sure to look through the correct view hole while looking through the viewfinder adjust the horizontal angle so that the pairing detector is at the center of the site do this by using a small dial directly under the beam head once the horizontal alignment is complete repeat the process using the larger dial for vertical alignment next use the dials to align th
