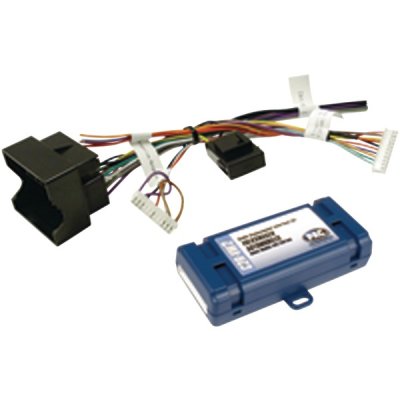

Pac C2r-Vw2 Radio Replacement Interface (With Navigation Outputs For Select Volkswagen(R) Vehicles)

okay so I want to start off and just show you this diagram here on how this is gonna work this will really simplify the process of hooking this guy up so you can see right here this is the module and then what you're gonna get is you're actually going to get two different setups here and that's because these 22 pin connectors are different so you're just going to need to figure out which one is going to match up with your Jeep so then this is the way this works so this guy right here is gonna plug directly into your factory Jeep harness right here boom that plugs into the factory harness this guy is gonna plug into this right here boom and then once that's all hooked up right there you'll have this guy and this is going to plug in on the back end of the control box and on the back of your radio and this is a pioneer mvh 2300 NEX this piece right here will plug in right back there and wh
