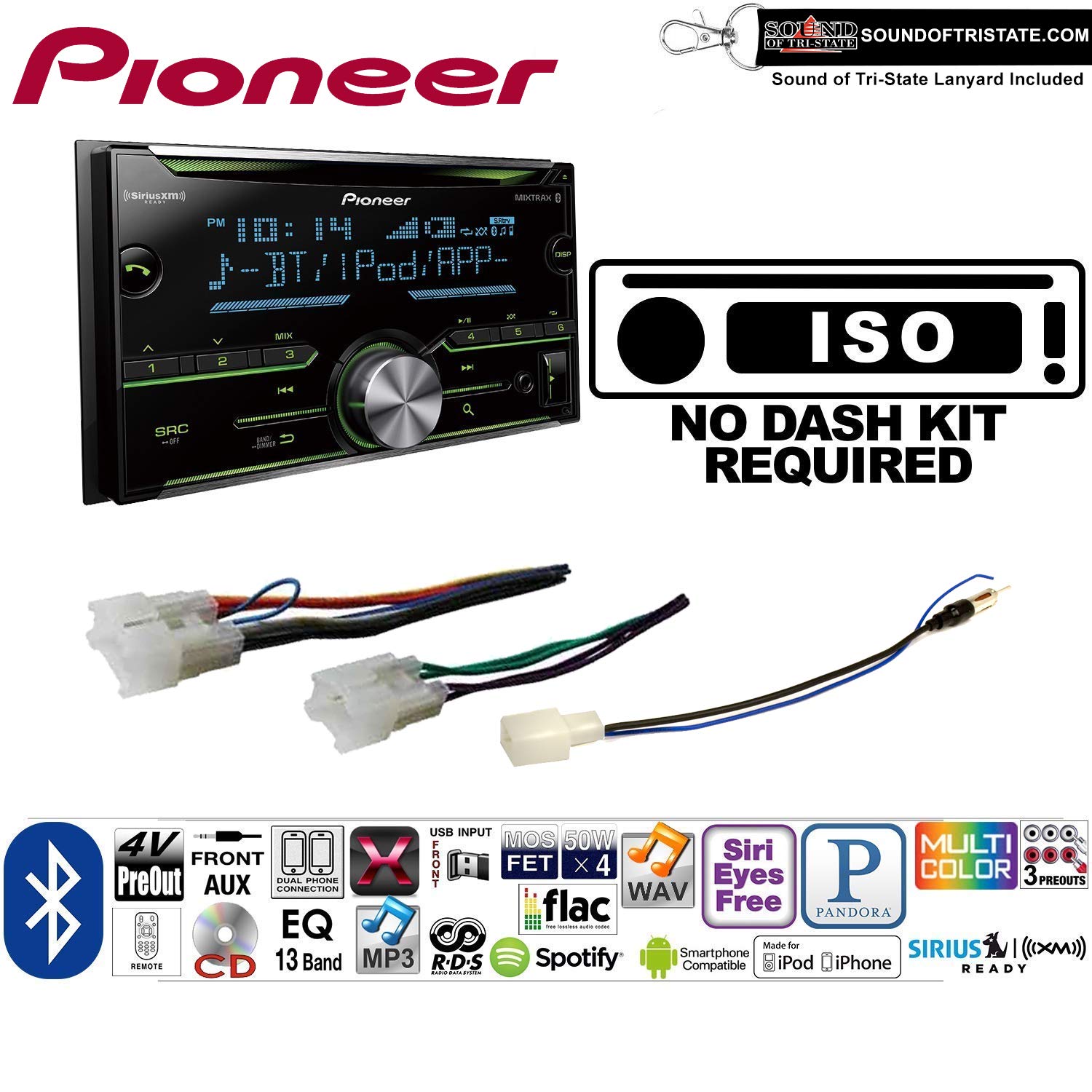

Pioneer FH-S701BS CD receiver

• CD receiver with AM/FM tuner
• built-in MOSFET amplifier (14 watts RMS CEA-2006/50 peak x 4 channels)
• built-in Bluetooth for hands-free calling and audio streaming
• MIXTRAX for a DJ-inspired audio/visual experience with compatible devices
• fits double-DIN (4"-tall) dash openings
• built in iPod, iPhone, and iPad controls
• Pandora and Spotify control with iPhone and Android
• ARC app provides smartphone control of receiver
• subwoofer level control

BHA1761 Aftermarket Radio Install Harness in select 1986-Up Toyota

When replacing the factory radio with an aftermarket radio a special harness is required. This wire harness fits the radio plugs (on the car side) allowing you to retain the original plugs should it become necessary to re-install the original radio..

The BHA1761 is Compatible with the radio plugs on the car side in 1986-Up Toyota, 2004-Up Scion, Lexus LX450, Subaru BRZ, Geo Prizm listed in "Select Compatible Vehicle" drop-down menu below that includes a 10 and 6-pin connector (without JBL amplified systems).

The BHA1761 does *NOT* fit the connectors on the Toyota radio.

BAA44 Aftermarket Radio Antenna adapter for select 2010-16 Toyota, Subaru

Required to convert the factory unique antenna when installing aftermarket products.

The BAA44 connects to the vehicle's antenna terminal in 2010-16 Toyota, 2010 Lexus and 2013-16 Subaru vehicles listed in the drop-down menu below.

INSTALLATION:

1. Connect the BAA44 to the factory unique antenna plug (car side)

2. Connect the standard DIN plug to the aftermarket replacement radio, modulator etc.

3. Connect the blue wire to the antenna turn-on wire from new radio.

PLEASE NOTE:

• Professional Installation is strongly recommended.
