Description:

Development Core Board for STM32 STM32F103ZET6 STM32F103 STM32 STM32F103ZE ARM Cortex-M3 STM32 JTAG/SWD Debug Interface Full IOs

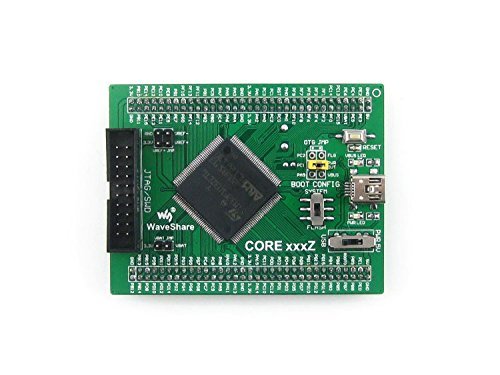

Core103Z is a small STM32 development board that features an STM32F103ZET6 device as the microcontroller, supports further expansion. It is ideal for starting application development with STM32F family.
Furthermore, pin headers on the backside allow the Core103Z to be plugged-in your application board and act as the MCU core circuit in your system. All the I/O ports are accessible on the pin headers, and the header pitch is designed as 2.00mm.
As a minimal ready-to-run system, the Core103Z integrates USB communication interface, JTAG/SWD programming/debugging interface, boot mode selection, and so on.

Note:
Core103Z provides JTAG/SWD debugging interface,
yet does NOT integrate any debugging function,
a debugger is required.

Development Resources:

Core103Z STM32 development board comes with a User Guide CD including development resources listed as below:
Related software (KEIL etc.)
Development documentations
Schematic (PDF)
Examples in C

Package included:

1 X Core103Z development Core board
1 X USB type A to Mini-B cable
1 X User guide CD
