Description
Receiving end RC832 parameters
Compatible with the old 8-pass transmitter
Operating frequency: 5.8GHz
Frequency point: 32 points
Input voltage: 12V
Operating Current: 200mA maximum
Antenna Impedance: 50
Antenna connector: receiving and transmitting ends RP-SMA jack module antenna terminal RP-SMA plus
Antenna gain: 2db
Video Impedance: 75
Video system: NTSC / PAL Auto
Dimensions: 80 * 65 * 15mm
Receive Weight: 85g
Transmitter TS832 parameters
Compatible with the old 8-pass receiver
Transmitting frequency: 5.8G
Transmit Power: 600mw
Frequency point: 40 points
Input Voltage: 7-16V
Antenna connector: Transmitter Module Antenna RP-SMA jack end end RP-SMA plus
Antenna gain: 2db
Operating Current: 220mA / 12V
Working temperature: -10-85 Celsius
Video system: NTSC / PAL Auto
Video Bandwidth: 8M
Audio Bandwidth: 6.5M
Launch weight: 22g
Dimensions: 54 * 32 * 10mm
Compatible with the old 8-pass transmitter
Operating frequency: 5.8GHz
Frequency point: 32 points
Input voltage: 12V
Operating Current: 200mA maximum
Antenna Impedance: 50
Antenna connector: receiving and transmitting ends RP-SMA jack module antenna terminal RP-SMA plus
Antenna gain: 2db
Video Impedance: 75
Video system: NTSC / PAL Auto
Dimensions: 80 * 65 * 15mm
Receive Weight: 85g
Transmitter TS832 parameters
Compatible with the old 8-pass receiver
Transmitting frequency: 5.8G
Transmit Power: 600mw
Frequency point: 40 points
Input Voltage: 7-16V
Antenna connector: Transmitter Module Antenna RP-SMA jack end end RP-SMA plus
Antenna gain: 2db
Operating Current: 220mA / 12V
Working temperature: -10-85 Celsius
Video system: NTSC / PAL Auto
Video Bandwidth: 8M
Audio Bandwidth: 6.5M
Launch weight: 22g
Dimensions: 54 * 32 * 10mm

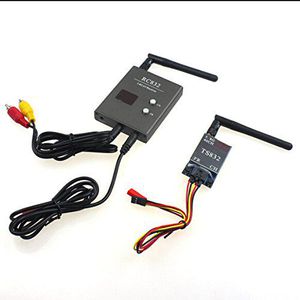

QWinOut FPV 5.8Ghz 600mW 40CH Wireless AV A/V Transmitter Receiver TS832 RC832 Tx & Rx Set for Professional Drones RC Plane DJI DIY Aerial Photography
Current Price
$43.99
Average
$43.99
Min Price
$43.99
Max Price
$43.99
Description
Receiving end RC832 parameters
Compatible with the old 8-pass transmitter
Operating frequency: 5.8GHz
Frequency point: 32 points
Input voltage: 12V
Operating Current: 200mA maximum
Antenna Impedance: 50
Antenna connector: receiving and transmitting ends RP-SMA jack module antenna terminal RP-SMA plus
Antenna gain: 2db
Video Impedance: 75
Video system: NTSC / PAL Auto
Dimensions: 80 * 65 * 15mm
Receive Weight: 85g
Transmitter TS832 parameters
Compatible with the old 8-pass receiver
Transmitting frequency: 5.8G
Transmit Power: 600mw
Frequency point: 40 points
Input Voltage: 7-16V
Antenna connector: Transmitter Module Antenna RP-SMA jack end end RP-SMA plus
Antenna gain: 2db
Operating Current: 220mA / 12V
Working temperature: -10-85 Celsius
Video system: NTSC / PAL Auto
Video Bandwidth: 8M
Audio Bandwidth: 6.5M
Launch weight: 22g
Dimensions: 54 * 32 * 10mm
Compatible with the old 8-pass transmitter
Operating frequency: 5.8GHz
Frequency point: 32 points
Input voltage: 12V
Operating Current: 200mA maximum
Antenna Impedance: 50
Antenna connector: receiving and transmitting ends RP-SMA jack module antenna terminal RP-SMA plus
Antenna gain: 2db
Video Impedance: 75
Video system: NTSC / PAL Auto
Dimensions: 80 * 65 * 15mm
Receive Weight: 85g
Transmitter TS832 parameters
Compatible with the old 8-pass receiver
Transmitting frequency: 5.8G
Transmit Power: 600mw
Frequency point: 40 points
Input Voltage: 7-16V
Antenna connector: Transmitter Module Antenna RP-SMA jack end end RP-SMA plus
Antenna gain: 2db
Operating Current: 220mA / 12V
Working temperature: -10-85 Celsius
Video system: NTSC / PAL Auto
Video Bandwidth: 8M
Audio Bandwidth: 6.5M
Launch weight: 22g
Dimensions: 54 * 32 * 10mm
