Features:

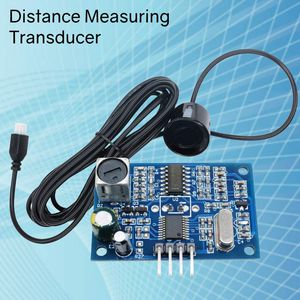

The JSN-SR0T4-2.0 ultrasonic ranging module can provide 20cm-600cm non-contact distance sensing function, and the ranging accuracy can be up to 2mm. The module consists of an integrated ultrasonic sensor and control circuit.

This product adopts industrial grade integrated ultrasonic probe design, waterproof type, stable performance, and modest on the market.
Some MCUs work.
1, small size, easy to use
2, wide power supply range, low power consumption
3, high measurement accuracy, high resolution
4, the detection blind zone is small, the distance is farther
5, the output mode is diversified, pulse width output, serial port output.

Product parameters:
Operating voltage: DC 3.0~5.5V
Operating current: less than 8mA
Probe frequency: 40kHz
Long range up to: 600cm
Near Range: 20cm
Distance accuracy: +-1cm
Measuring angle: 75 degrees
Input trigger signal:
1, TTL pulse above 10uS
2, serial transmission instructions 0X55
Output reverb signal: output pulse width level signal, or TTL Wiring:
3-5.5V (power positive)
Trig (control) RX
Echo (output) TX
GND (power negative)
Product Size: L*W*H=42*29*12mm
Working temperature: -20~70 degrees Celsius
Product color: PCB board is blue

Package Included :
1*Waterproof Ultrasonic Distance Module
