Specification:
Access Control Keypad:
Card Type: EM- ID card
Frequency: 125Khz
Read Speed: <0.2s
Reading range: 0-10cm
Input Voltage: DC12V
Operating current: <100mA
Open way: card, password, card and password
Power Supply:
Input Voltage: AC 110-240V (Worldwide voltage)
Input Frequency: 50-60Hz
Output Voltage: DC 12V/3A
Adjustable Locking Delay: 0~15 sec
NO lock
Voltage: DC12V
Current: 200mA
Keep: 500 kg / 1102 lb
Fault protection: mode-free (locked when power is off)
Use a 2-wire non-polarized connection to access control or exit devices
Signal output: no
Keyfobs(10PCS):
Operation Frequency: 125KHz
Reading distance: 3-10cm / 1.18-3.94in
Each keyfob has an unique ID number
Password access control:120*76*28mm/4.7*3*1.1in
Power supply:120*95*38mm/4.7*3.7*1.5in
NO lock: 149*28*34mm/5.9*1.1*1.3in
Packing size:205*300*92mm/8.1*11.8*3.6in
Product Weight:Approx.1111g/39.2oz

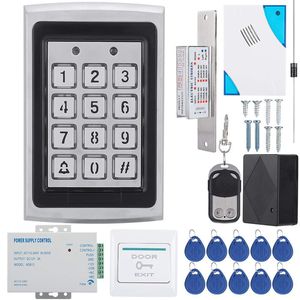

Package list:
1 x ADF005 Access Control
1 x NO lock(150KA)
1 x remote control
1 x doorbell
1 x power supply
1 x door open button
10 x keyfobs
1set x instructions
1 set x mounting screw
