Description
Specification:

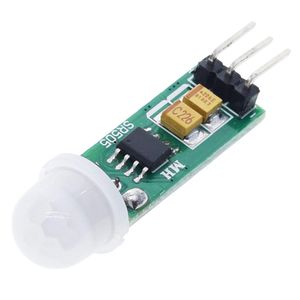

Type: PIR HC-SR505 Motion Sensor
Quiescent current: less than 50mA
Operating Voltage Range: DC4.5-20V
Output level: High 3.3V Low 0V
Trigger: repeatable trigger (default)
Delay time: Default 8S + -30%
Induction angle: less than 100 degree cone angle
Induction distance: 3 meters
Working temperature: -20 - +80 degrees
Sensor Lens Dimensions: Diameter: 10mm
PCB Dimensions: 10mm x 23mm
Package includes: 1 x Motion Sensor Detector Module
HC-SR505 Motion Sensor is based on infrared technology automatic control products. It has advantages as high sensitivity, strong reliability, ultra-small volume, ultra-low voltage working mode .Widely used in all kinds of automatic induction electrical equipment, especially dry battery power automatic control products.
Suitable for: Body induction lamps, body sensors toys, security products, industrial automation and control, auto-sensing of electrical equipment and battery-powered automatic control, etc
Type: PIR HC-SR505 Motion Sensor
Quiescent current: less than 50mA
Operating Voltage Range: DC4.5-20V
Output level: High 3.3V Low 0V
Trigger: repeatable trigger (default)
Delay time: Default 8S + -30%
Induction angle: less than 100 degree cone angle
Induction distance: 3 meters
Working temperature: -20 - +80 degrees
Sensor Lens Dimensions: Diameter: 10mm
PCB Dimensions: 10mm x 23mm
Package includes: 1 x Motion Sensor Detector Module
HC-SR505 Motion Sensor is based on infrared technology automatic control products. It has advantages as high sensitivity, strong reliability, ultra-small volume, ultra-low voltage working mode .Widely used in all kinds of automatic induction electrical equipment, especially dry battery power automatic control products.
Suitable for: Body induction lamps, body sensors toys, security products, industrial automation and control, auto-sensing of electrical equipment and battery-powered automatic control, etc
