Description
Description:
SainSmart 5V solid state relays per channel 250V 2A, output with resistive fuse 250V 2A
Features:
 8 channel 2 AMP Solid State Relay board Good for lighting- holiday displays etc
 The input control signal voltage: (0-0.5V LOW solid state relay OFF) (2.5-20V high solid state relays ON)
 Rated output load: 2A at 100 to 240VAC (50/60Hz)
 Load voltage range: 75 to 264VAC (50/60Hz)
 Load current: 0. 1 to 2 AMP
 Power supply: 5VDC / 160mA (all channel ON)
 Load type: General purpose
 Isolation: Phototriac
 Zero cross: Yes
Module interface:
Input section:
 DC+: positive power supply (by relay voltage power supply)
 DC-: connect power negative
 CH1: 1 relay module signal to trigger the end (high level trigger effective)
 CH2: 2-channel relay module signal to trigger the end (high level trigger
effective)
 CH3: 3 relay module signal to trigger the end (high level trigger effective)
 CH4: 4-channel relay module signal to trigger the end (high level trigger effective)
 CH5: 5 relay module signal to trigger the end (high level trigger effective)
 CH6: 6-channel relay module signal to trigger the end (high level trigger effective)
 CH7: 7 relay module signal to trigger the end (high level trigger effective)
 CH8: 8-channel relay module signal to trigger the end (high level trigger effective)
Package list:

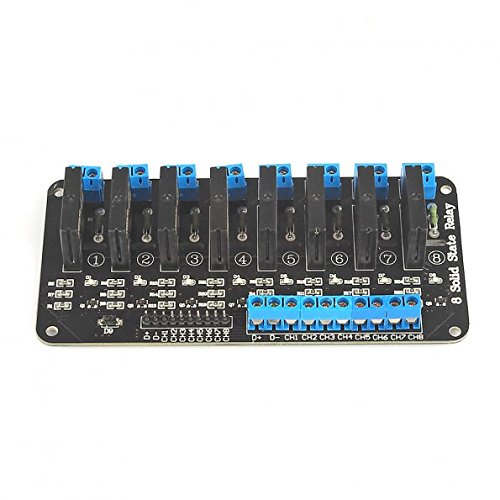

1 x SainSmart 8 Channel 5V solid state relay module board
SainSmart 5V solid state relays per channel 250V 2A, output with resistive fuse 250V 2A
Features:
 8 channel 2 AMP Solid State Relay board Good for lighting- holiday displays etc
 The input control signal voltage: (0-0.5V LOW solid state relay OFF) (2.5-20V high solid state relays ON)
 Rated output load: 2A at 100 to 240VAC (50/60Hz)
 Load voltage range: 75 to 264VAC (50/60Hz)
 Load current: 0. 1 to 2 AMP
 Power supply: 5VDC / 160mA (all channel ON)
 Load type: General purpose
 Isolation: Phototriac
 Zero cross: Yes
Module interface:
Input section:
 DC+: positive power supply (by relay voltage power supply)
 DC-: connect power negative
 CH1: 1 relay module signal to trigger the end (high level trigger effective)
 CH2: 2-channel relay module signal to trigger the end (high level trigger
effective)
 CH3: 3 relay module signal to trigger the end (high level trigger effective)
 CH4: 4-channel relay module signal to trigger the end (high level trigger effective)
 CH5: 5 relay module signal to trigger the end (high level trigger effective)
 CH6: 6-channel relay module signal to trigger the end (high level trigger effective)
 CH7: 7 relay module signal to trigger the end (high level trigger effective)
 CH8: 8-channel relay module signal to trigger the end (high level trigger effective)
Package list:
1 x SainSmart 8 Channel 5V solid state relay module board
SainSmart 5V 2A 8 Channel Solid State Relay Module High Level Trigger Black for Arduino Uno Duemilanove MEGA2560 MEGA1280 ARM DSP PIC
Price is below average
Current Price
$19.99
Average
$20.56
Min Price
$12
Max Price
$25.99
Price dynamics
3%
