Description

Specification:

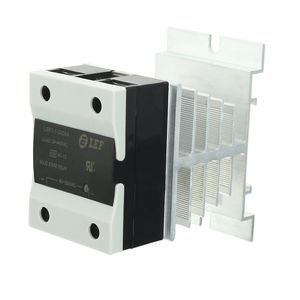

This is solid state relay LSR1-1-340AA
Model: LSR1-1-340AA
Input voltage: 90-250VAC
Output voltage: 24-440V AC
Output current: 40A
Total Size: 8 x 5 x 8cm/ 3.1 x 2 x 3.1inch (L*W*H)

Package Content:
1 x Solid State Relay LSR1-1-340AA
1 x Heat Sink
Matters Needing Attention:

1. The current on the product is the maximum load current, not the rated current.
2. On the basis of the different of the load character,you should keep the different allowance on the level of the current when you choose the product.(When the load is resistive, the load current should be 1/2-1/3 times of the max load current .When the load is inductive or capacitive,like motor， transformer， the load current should be 1/4-1/6 times of max load current.)
3. When Installation,solid state plater and radiator with smeared thermal conductivity silicone grease
4. ≥20A With radiator, ≥30A with radiator and fan strong cold.
5. The thermal compound has been applied evenly on between the heat sink and the SSR, MAYBE IT LOOKS LIKE A STAIN AND IS NOT CLEAN MUCH, but it is for better heat dissipation, please note.

uxcell LSR1-1-340AA 40A AC to AC 90-250VAC to 24-440AC SSR Thermal Compound Solid State Relay + Heat Sink

Price is below average

Current Price

$20.21

Average

$20.98

Min Price

$19.57

Max Price

$21.99

Price dynamics

4%

Description

Specification:
This is solid state relay LSR1-1-340AA
Model: LSR1-1-340AA
Input voltage: 90-250VAC
Output voltage: 24-440V AC
Output current: 40A
Total Size: 8 x 5 x 8cm/ 3.1 x 2 x 3.1inch (L*W*H)

Package Content:
1 x Solid State Relay LSR1-1-340AA
1 x Heat Sink
Matters Needing Attention:

1. The current on the product is the maximum load current, not the rated current.
2. On the basis of the different of the load character,you should keep the different allowance on the level of the current when you choose the product.(When the load is resistive, the load current should be 1/2-1/3 times of the max load current .When the load is inductive or capacitive,like motor， transformer， the load current should be 1/4-1/6 times of max load current.)
3. When Installation,solid state plater and radiator with smeared thermal conductivity silicone grease
4. ≥20A With radiator, ≥30A with radiator and fan strong cold.
5. The thermal compound has been applied evenly on between the heat sink and the SSR, MAYBE IT LOOKS LIKE A STAIN AND IS NOT CLEAN MUCH, but it is for better heat dissipation, please note.
