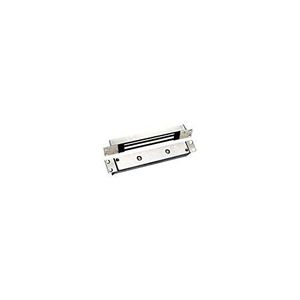

Securitron SAMBD Shear Lock 12/24Vdc Bond Stat, Satin Chrome

this video will guide you through the installation of the m6 70 an m6 80 series Magna lock you'll see the use of a new plastic template for a fast and easy install of the bracket mounted Magna lock have the following installation tools ready before mounting the mag lock configure the dip switches and jumpers it's much easier to do that on the table than when it's mounted remove the two screws that secure the cover to the lock and set these aside you'll need them to reattach the cover later this Magna lock series has been designed with several user adjustable settings let's go through each setting disable the LED indicator the default factory setting is enabled if you'd like to disable the LED remove the jumper on jp4 change the color of the LED indicator the LED can display two colors green and red you can select which color to display when the magnet is locked the default setting is re
