Description
This CNC kit included:
*1 x Closed Loop Stepper Driver 0~8.2A 24~80VDC for Nema 34 Stepper Motor
*1 x Nema 34 Closed Loop Stepper Motor 8.25Nm/1168.53oz.in Encoder 1000CPR
*1 x 1.7 m(67") Long Encoder Extension Cable for Closed Loop Stepper Driver
*1 x RV-4 AWG18 1.7 m(67") Long Motor Extension Cable with GX16 Aviation Plug for Nema 34 Closed Loop Stepper Motors (Just for aviation-plug model motor)
Motor Specification
*Manufacturer Part Number: 34HS46-6004D-E1000
*Motor Type: Bipolar Stepper
*Step Angle: 1.8 deg
*Frame Size: 86 x 86 mm
*Holding Torque: 8.25 N.m(1168.53 oz.in)
*Rated Current/phase: 6 A
*Shaft Diameter: Φ14 mm
*Shaft Length: 40 mm
*Key-Way Length: 25 mm
*Phase Resistance: 0.4 ohm
*Inductance: 4.2 mH ± 20%(1KHz)
*Number of Leads: 4
*Lead Length: 300 mm
*Driving Voltage : 5V
*Output current : 55mA
*Resolution : 1000ppr
*Output Signal : 2 Channels
*Bore Diameter : Φ8mm
*Output Frequency : ≤1MHz
*Running Speed : ≤5000rpm
*IP Protection : IP20
Connection
*A+: White, A-: Green, B+: Blue, B-: Black
Driver Specification
*Output Peak Current: 0~8.2A, Input Voltage: +24~80VDC (Typical 48VDC)
*Closed-loop, eliminates loss of synchronization
*Broader operating range - higher torque and higher speed
*Reduced motor heating and more efficient
*Smooth motion and super-low motor noise
*Do not need a high torque margin
*No Tuning and always stable
*Quick response, no delay and almost no settle time
*High torque at starting and low speed, high stiffness at standstill
*Offer servo-like performance at a much lower cost
*1 x Closed Loop Stepper Driver 0~8.2A 24~80VDC for Nema 34 Stepper Motor
*1 x Nema 34 Closed Loop Stepper Motor 8.25Nm/1168.53oz.in Encoder 1000CPR
*1 x 1.7 m(67") Long Encoder Extension Cable for Closed Loop Stepper Driver
*1 x RV-4 AWG18 1.7 m(67") Long Motor Extension Cable with GX16 Aviation Plug for Nema 34 Closed Loop Stepper Motors (Just for aviation-plug model motor)
Motor Specification
*Manufacturer Part Number: 34HS46-6004D-E1000
*Motor Type: Bipolar Stepper
*Step Angle: 1.8 deg
*Frame Size: 86 x 86 mm
*Holding Torque: 8.25 N.m(1168.53 oz.in)
*Rated Current/phase: 6 A
*Shaft Diameter: Φ14 mm
*Shaft Length: 40 mm
*Key-Way Length: 25 mm
*Phase Resistance: 0.4 ohm
*Inductance: 4.2 mH ± 20%(1KHz)
*Number of Leads: 4
*Lead Length: 300 mm
*Driving Voltage : 5V
*Output current : 55mA
*Resolution : 1000ppr
*Output Signal : 2 Channels
*Bore Diameter : Φ8mm
*Output Frequency : ≤1MHz
*Running Speed : ≤5000rpm
*IP Protection : IP20
Connection
*A+: White, A-: Green, B+: Blue, B-: Black
Driver Specification
*Output Peak Current: 0~8.2A, Input Voltage: +24~80VDC (Typical 48VDC)
*Closed-loop, eliminates loss of synchronization
*Broader operating range - higher torque and higher speed
*Reduced motor heating and more efficient
*Smooth motion and super-low motor noise
*Do not need a high torque margin
*No Tuning and always stable
*Quick response, no delay and almost no settle time
*High torque at starting and low speed, high stiffness at standstill
*Offer servo-like performance at a much lower cost

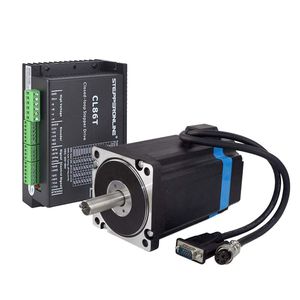

STEPPERONLINE 1 Axis Closed Loop Stepper Motor CNC Kit 8.25 Nm(1168.53 oz.in) Nema 34 Motor & 0~8.2A 24~80VDC Stepper Motor Driver& 2 Extension Cable
Price is below average
Current Price
$130.59
Average
$142.25
Min Price
$130.59
Max Price
$169.05
Price dynamics
8%
Description
This CNC kit included:
*1 x Closed Loop Stepper Driver 0~8.2A 24~80VDC for Nema 34 Stepper Motor
*1 x Nema 34 Closed Loop Stepper Motor 8.25Nm/1168.53oz.in Encoder 1000CPR
*1 x 1.7 m(67") Long Encoder Extension Cable for Closed Loop Stepper Driver
*1 x RV-4 AWG18 1.7 m(67") Long Motor Extension Cable with GX16 Aviation Plug for Nema 34 Closed Loop Stepper Motors (Just for aviation-plug model motor)
Motor Specification
*Manufacturer Part Number: 34HS46-6004D-E1000
*Motor Type: Bipolar Stepper
*Step Angle: 1.8 deg
*Frame Size: 86 x 86 mm
*Holding Torque: 8.25 N.m(1168.53 oz.in)
*Rated Current/phase: 6 A
*Shaft Diameter: Φ14 mm
*Shaft Length: 40 mm
*Key-Way Length: 25 mm
*Phase Resistance: 0.4 ohm
*Inductance: 4.2 mH ± 20%(1KHz)
*Number of Leads: 4
*Lead Length: 300 mm
*Driving Voltage : 5V
*Output current : 55mA
*Resolution : 1000ppr
*Output Signal : 2 Channels
*Bore Diameter : Φ8mm
*Output Frequency : ≤1MHz
*Running Speed : ≤5000rpm
*IP Protection : IP20
Connection
*A+: White, A-: Green, B+: Blue, B-: Black
Driver Specification
*Output Peak Current: 0~8.2A, Input Voltage: +24~80VDC (Typical 48VDC)
*Closed-loop, eliminates loss of synchronization
*Broader operating range - higher torque and higher speed
*Reduced motor heating and more efficient
*Smooth motion and super-low motor noise
*Do not need a high torque margin
*No Tuning and always stable
*Quick response, no delay and almost no settle time
*High torque at starting and low speed, high stiffness at standstill
*Offer servo-like performance at a much lower cost
*1 x Closed Loop Stepper Driver 0~8.2A 24~80VDC for Nema 34 Stepper Motor
*1 x Nema 34 Closed Loop Stepper Motor 8.25Nm/1168.53oz.in Encoder 1000CPR
*1 x 1.7 m(67") Long Encoder Extension Cable for Closed Loop Stepper Driver
*1 x RV-4 AWG18 1.7 m(67") Long Motor Extension Cable with GX16 Aviation Plug for Nema 34 Closed Loop Stepper Motors (Just for aviation-plug model motor)
Motor Specification
*Manufacturer Part Number: 34HS46-6004D-E1000
*Motor Type: Bipolar Stepper
*Step Angle: 1.8 deg
*Frame Size: 86 x 86 mm
*Holding Torque: 8.25 N.m(1168.53 oz.in)
*Rated Current/phase: 6 A
*Shaft Diameter: Φ14 mm
*Shaft Length: 40 mm
*Key-Way Length: 25 mm
*Phase Resistance: 0.4 ohm
*Inductance: 4.2 mH ± 20%(1KHz)
*Number of Leads: 4
*Lead Length: 300 mm
*Driving Voltage : 5V
*Output current : 55mA
*Resolution : 1000ppr
*Output Signal : 2 Channels
*Bore Diameter : Φ8mm
*Output Frequency : ≤1MHz
*Running Speed : ≤5000rpm
*IP Protection : IP20
Connection
*A+: White, A-: Green, B+: Blue, B-: Black
Driver Specification
*Output Peak Current: 0~8.2A, Input Voltage: +24~80VDC (Typical 48VDC)
*Closed-loop, eliminates loss of synchronization
*Broader operating range - higher torque and higher speed
*Reduced motor heating and more efficient
*Smooth motion and super-low motor noise
*Do not need a high torque margin
*No Tuning and always stable
*Quick response, no delay and almost no settle time
*High torque at starting and low speed, high stiffness at standstill
*Offer servo-like performance at a much lower cost
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
