Product description
Usongshine is a professional supplier of 3D Printers related accessories products.
It has a professional R&D team and high quality after-sales service to ensure that you can enjoy your shopping.
Please contact us if you have any questions.
Specifications:
Product type:Bipolar Nema 17 Stepper Motor
Size:42*42*38mm
Phase: 2 Phase
Step Angle: 1.8 deg.
Working voltage: DC 9-42V
Rated Current/phase: 1.5A
Holding Torque:42N.cm (60oz.in)
Insulation Class: B(130℃)
Step angle accuracy: + - 5%(full step,not load)
Resistance accuracy: + - 10%
Inductance accuracy: + - 20%
Temperature rise: 80deg Max(rated current,2 phase on)
Ambient temperature ----------20deg ~+50deg
Insulation resistance:100M Min,500VDC
Insultion Strength--------500VAC for one minute.
Maximum no load Starting frequency:≥ 1500PPS.
Maximum No Load Operating frequency:≥ 1900 PPS
Insulation resistance:≥100 MΩ(DC 500V)
Electrical limit:AC600V/1mA/1S.
Connection: Black(A+), Green(A-), Red(B+), Blue(B-)
Package Including
3 PCS Nema 17 Stepper Motor
3 PCS 1m 4pins cable and connector
Usongshine is a professional supplier of 3D Printers related accessories products.
It has a professional R&D team and high quality after-sales service to ensure that you can enjoy your shopping.
Please contact us if you have any questions.
Specifications:
Product type:Bipolar Nema 17 Stepper Motor
Size:42*42*38mm
Phase: 2 Phase
Step Angle: 1.8 deg.
Working voltage: DC 9-42V
Rated Current/phase: 1.5A
Holding Torque:42N.cm (60oz.in)
Insulation Class: B(130℃)
Step angle accuracy: + - 5%(full step,not load)
Resistance accuracy: + - 10%
Inductance accuracy: + - 20%
Temperature rise: 80deg Max(rated current,2 phase on)
Ambient temperature ----------20deg ~+50deg
Insulation resistance:100M Min,500VDC
Insultion Strength--------500VAC for one minute.
Maximum no load Starting frequency:≥ 1500PPS.
Maximum No Load Operating frequency:≥ 1900 PPS
Insulation resistance:≥100 MΩ(DC 500V)
Electrical limit:AC600V/1mA/1S.
Connection: Black(A+), Green(A-), Red(B+), Blue(B-)
Package Including
3 PCS Nema 17 Stepper Motor
3 PCS 1m 4pins cable and connector

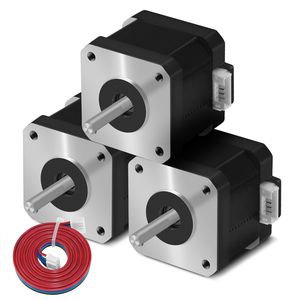

Usongshine Nema 17 Stepper Motor Bipolar 38mm Body 42N.cm (60oz.in) 1.5A 4-Lead with 1m Cable and Connector for 3D Printer/Extruder/DIY CNC(17HS4401S Pack of 3)
