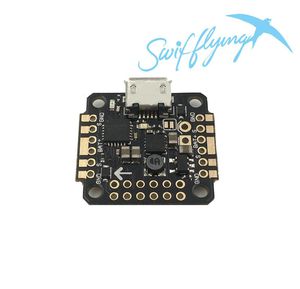

Swiftflying FPV Racewhoop 15A PDB 16x16mm Smallest Brushless Flight Controller

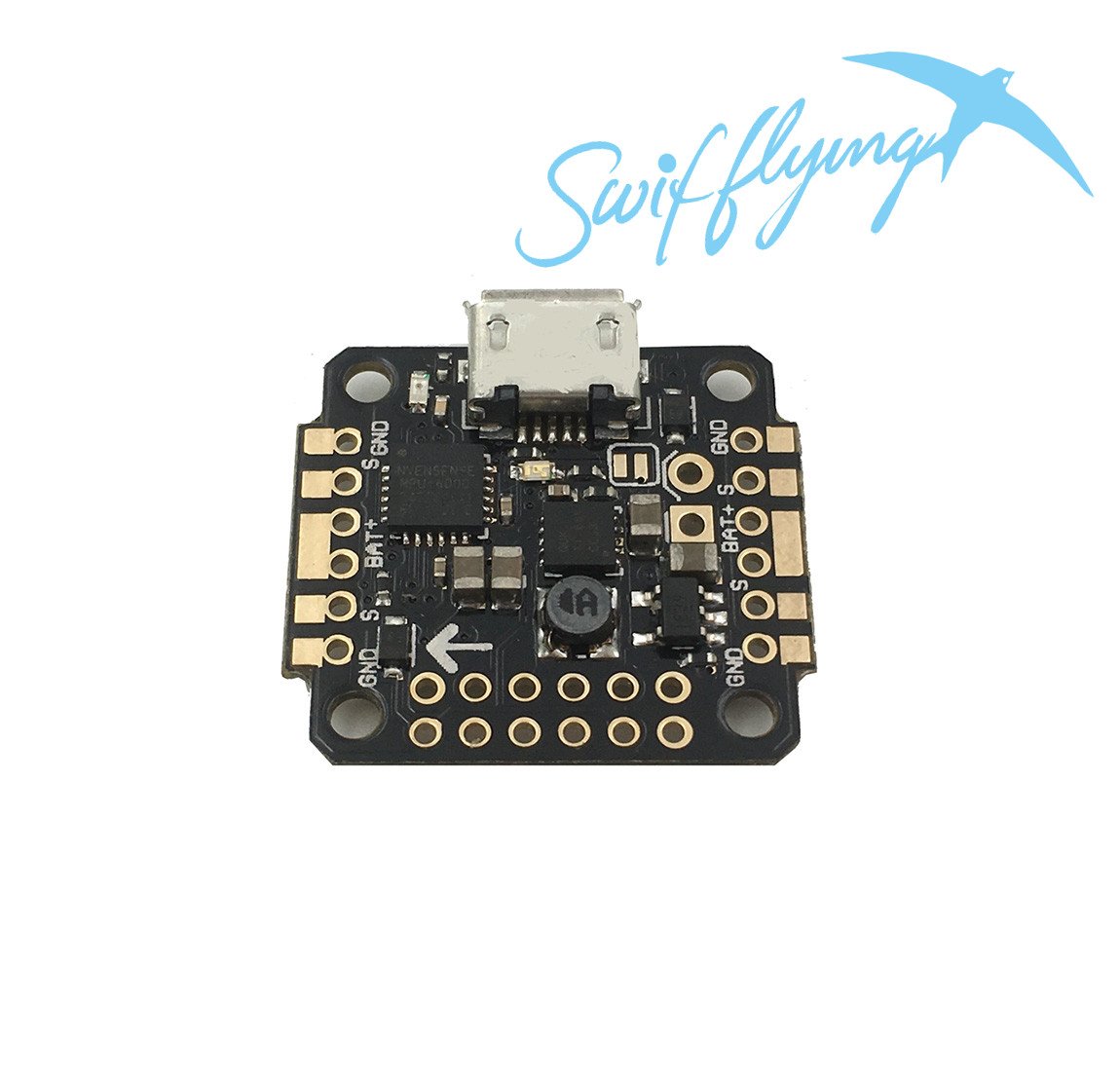

the next part in our video bill is the pic Obelix flight controller it weighs two point seven four grams you can come with any instructions so I'm going to go with you over all the connections and wires first of all we have here this is the micro USB connector to configure this flight controller over here we have the bus plus and the buzz - to folder connect the buzzer on the bottom we have the pads for the ESC s we have here and here now I run banquet that this battery a pads out reverse with twins here it's the instead of being here the plus in here the - this is the - and this is the plus before after connected to the power source I will make sure with a multimeter that these connectors are true otherwise they can burn your ESC so this is a very important issue to address the boot pads are located here on the top you will have to short cut them in order to flash a new version to this
