Texas Instruments TI CBR Motion Sensor

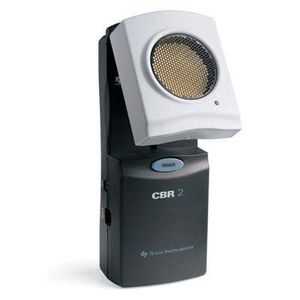

this is a CBR 2 CBR 2 is a motion detector the CBR 2 can plug directly into a TI graphing calculator when you purchase the CBR 2 it comes with two cables one cable is a USB cable that allows us to plug directly into a ti-84 plus calculator I'm going to demonstrate that to you the CBR 2 can also be used with older calculators such as the ti-83 plus it requires a different cable this is the cable that plugs into the bottom of the calculator the other end plugs into the side of the CBR 2 let's go back and use the USB cable so I'll put that aside on on the left-hand side of the CBR 2 is a USB port so I'll plug that USB connection into the CBR 2 plug the other USB connector into the 84 plus after doing that it wakes the calculator up automatically launches the ez data application there's a meter that shows us the current reading from the sensor I'm going to go ahead and lay this on the table
