Feature:

Specifications:
Supply voltage: 220VAC; Power: 4.5VA; Output relays: 240V/5A
Operating temperature: -20~65°C; Storage temperature: -40~85°C
Frequency range: 20 kHz to 170 kHz; Temperature compensation: 50°C/ h
Reaction time: 10ms; Signal holding time: Unlimited/limited
Sensitivity: Higher:0.02%; high:0.05%; low:0.1%; lower:0.5%
Loop inductance: Total loop plus connection wiring:50μH to 1000μH. Ideal is 100μH to 300μH
Loop connection: wiring 200 meters long. The total resistance is less than 80hm, twisted at least 20 times per meter
Relative humidity:<90%No condensation; Weight: 283g

Package included:

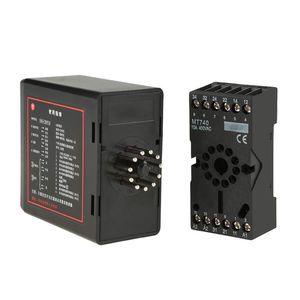

1 × Vehicle Loop Detector ;1 × manual
