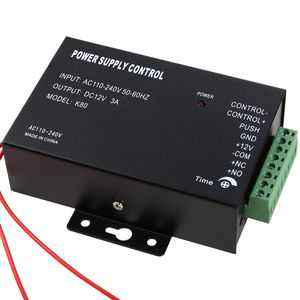

Features:
Compatible with E/M lock, access controller, exit push button and RFID reader
Can reduce the load of access controller, save wiring to reduce the hidden trouble
Set NC/NO outputs, can control various types of electric locks
Based relay control circuit, lock time can be adjusted with 0 -15 seconds
Automatic protection function for dangerous situation: overload / over voltage / short circuit
Protection mechanism: power may be temporarily disconnected or the fuse auto insured
Operative device: E/M Lock, access controller, exit push Button
Compact design and light weight
Built-in buzzer, will sound in active status (Min. sound pressure level: 70dB at 12VDC/10cm)

Specification:
Input Voltage: 110-240V AC (Worldwide voltage)
Input Frequency: 50-60Hz
Output Voltage: 12VDC/3A
Power: 36W
Load: 1% Typical
Output Stability: 0.5% Typical
Hold Time: Full Load Typically 20ms
Operating Temperature: -20℃~65℃ / -4℉~149℉
Adjustable Locking Delay: 0~15sec
Dimensions: 120Lx95Wx38H(mm) / 4.72Lx3.74Wx1.50H(in)

Package:
1 x Power Supply
1 x User manual
