Description

Access Control:
Operating Voltage: DC12V
User Capacity: 2000
Card Reading Distance: 2-10mm / 0.08-0.39in
Current: <30mA (Standby);<60mA (Active)
Lock Output Load: <3A
Alarm Output Load: <20A
Operation Temperature: -45℃~60℃ / -49℉~140℉
Adjustable Door Relay time: 0~99 seconds
Wiring Connections: Electric Lock, Exit Button, External Alarm, External Reader
Compatible Cards: EM standard card
Dimension : Approx. 120(W)x58(H)x22(D)mm / 4.72(W)x2.28(H)x0.87(D)mm
Net Weight: Approx. 371g / 0.82lb

Power Supply:
Input Voltage: AC110-240V (Worldwide voltage)
Input Frequency: 50~60Hz
Output Voltage: DC 12V/3A
Adjustable Locking Delay: 0~15 sec
Dimensions: 4.72Lx3.74Wx1.50H(in) / 120Lx95Wx38H(mm)

Doorbell:
Wired door bell 12V for security access control
Working Voltage: DC12V
Switch is not included
Approx. 88(W)x62(H)x24(D)mm / 3.46(W)x2.44(H)x0.94(D)

Keyfobs & Cards:
Operation Frequency: 125KHz
Reading distance: 3-10cm / 1.18-3.94in
Each keyfob has an unique ID number

Magnetic Lock:
UL listed with the US and Canada
Cover Finish: Anodized aluminum
Lock Finish: Zinc
Armature Plate Finish: Zinc
Input Voltage: 12VDC
Current: 12V/520mA
Holding: 280kg / 600Lbs
Fail safe: Unlocked while power is removed
Dimensions (body): 250Lx48.5Wx25H(mm) / 9.84Lx1.91x0.98H(in)
LED: Red shows locked; Green shows unlocked
Signal Output: Lock signal (NO/NC/COM)

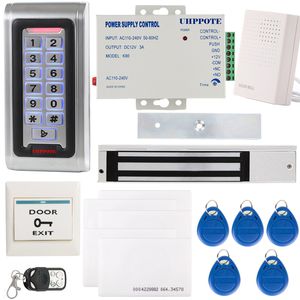

Package includes:
1 x Access machine
1 x Electric lock
1 x Power supply
1 x Exit button
1 x Remote
5 x ID cards
5 x RFID keyfobs
1 x User Manual

UHPPOTE Outswinging Door RFID Access Control System Keypad ID Card & 280Kg Magnetic Lock, Mag-lock with UL Listed

Get price

Current Price

$119.5

Average

$118.35

Min Price

$95

Max Price

$134

Price dynamics

Description

Doorbell:
Wired door bell 12V for security access control
Working Voltage: DC12V
Switch is not included
Approx. 88(W)x62(H)x24(D)mm / 3.46(W)x2.44(H)x0.94(D)

Keyfobs & Cards:
Operation Frequency: 125KHz
Reading distance: 3-10cm / 1.18-3.94in
Each keyfob has an unique ID number

Package includes:
1 x Access machine
1 x Electric lock
1 x Power supply
1 x Exit button
1 x Remote
5 x ID cards
5 x RFID keyfobs
1 x User Manual

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

today we're gonna take a look at this very low-end door access system from Amazon when we take a look at each of the components we'll be setting up I'll demonstrate how all the components work together how each part works in itself and then I'll be demonstrating a pretty major security flaw with these devices and why you shouldn't really trust them so this is the dong yang RFID keeper door access control system kit 180 kilograms magnetic lock plus power supply plus 10 key pieces key fob Phil say it as the old from Amazon for 31 pounds 85 which is very low price for some sort of door access control system and they try and advertise this as like a door access control system for you know offices and commercial places and while on the surface that looks like the sort of system you would see in a big office it is not and has got quite a great clearing security flaw no why have I bought this
