Description
Product description
Size:4-Port USB 3.0

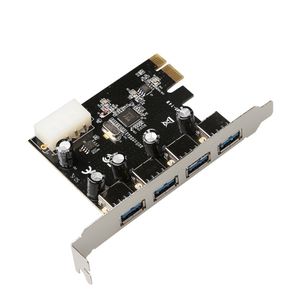

Just insert the RC-508 into the PCI-E slot of your motherboard,
and own USB 3.0 ports immediately.
PCI Express (PCI-E) is a standard interface on most types of motherboards.
With PCI-E, RC-508 provides high-speed data transferring between PC and USB 3.0 devices,
up to 5 Gbps; thus, you may directly enjoy high-resolution videos stored in your USB 3.0 storage,
other than copying them to your PC in advance.
RC-508 offers 4 ports of USB 3.0,
and each supports backwards compatibility to USB 2.0 and 1.1 automatically,
making it easy to copy files and enjoy videos simultaneously.
Specifications
Type: PCI Express to USB Card
External USB Ports: 4 port USB 3.0
Internal USB Ports: USB 3.0
External Ports: 4 port USB 3.0
Data Transfer Rate: Up to 5.0 Gbps
Operating Systems Supported: Windows XP/Vista/7/8/8.1 (32/64 bit)
Features
Chipset: VL805-Q6
Supports 4 downstream ports for all speeds
Supports the following speed data rates as follows:
Low-speed (1.5Mb/s) / Full-speed (12Mb/s) / High-speed (480Mb/s) / Super-speed (5Gb/s)
Single-lane (x1) PCI Express throughput rates up to 5 Gb/s
Support USB Battery Charging Specification Revision 1.2
Fully compliant with PCI Express Base Specification Revision 2.0
Compliant with Universal Serial Bus 3.0 specification Revision 1.0
Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
Compliant with Intel's eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
Built-in 4-pin power connector for receiving extra power supply from system
Hot-swapping feature allows you to connect/disconnect devices without powering down the system
Size:4-Port USB 3.0
Just insert the RC-508 into the PCI-E slot of your motherboard,
and own USB 3.0 ports immediately.
PCI Express (PCI-E) is a standard interface on most types of motherboards.
With PCI-E, RC-508 provides high-speed data transferring between PC and USB 3.0 devices,
up to 5 Gbps; thus, you may directly enjoy high-resolution videos stored in your USB 3.0 storage,
other than copying them to your PC in advance.
RC-508 offers 4 ports of USB 3.0,
and each supports backwards compatibility to USB 2.0 and 1.1 automatically,
making it easy to copy files and enjoy videos simultaneously.
Specifications
Type: PCI Express to USB Card
External USB Ports: 4 port USB 3.0
Internal USB Ports: USB 3.0
External Ports: 4 port USB 3.0
Data Transfer Rate: Up to 5.0 Gbps
Operating Systems Supported: Windows XP/Vista/7/8/8.1 (32/64 bit)
Features
Chipset: VL805-Q6
Supports 4 downstream ports for all speeds
Supports the following speed data rates as follows:
Low-speed (1.5Mb/s) / Full-speed (12Mb/s) / High-speed (480Mb/s) / Super-speed (5Gb/s)
Single-lane (x1) PCI Express throughput rates up to 5 Gb/s
Support USB Battery Charging Specification Revision 1.2
Fully compliant with PCI Express Base Specification Revision 2.0
Compliant with Universal Serial Bus 3.0 specification Revision 1.0
Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
Compliant with Intel's eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
Built-in 4-pin power connector for receiving extra power supply from system
Hot-swapping feature allows you to connect/disconnect devices without powering down the system
USB3.0 PCIe 4 Port Card.USB 3.0 to PCI Express Card Expansion card,5Gbps PCIe Hub Controller Adapter Rosewill RC-508 PCIE Card
Current Price
$15.99
Average
$14.59
Min Price
$11.99
Max Price
$17.99
Price dynamics
9%
Description
Product description
Size:4-Port USB 3.0
Just insert the RC-508 into the PCI-E slot of your motherboard,
and own USB 3.0 ports immediately.
PCI Express (PCI-E) is a standard interface on most types of motherboards.
With PCI-E, RC-508 provides high-speed data transferring between PC and USB 3.0 devices,
up to 5 Gbps; thus, you may directly enjoy high-resolution videos stored in your USB 3.0 storage,
other than copying them to your PC in advance.
RC-508 offers 4 ports of USB 3.0,
and each supports backwards compatibility to USB 2.0 and 1.1 automatically,
making it easy to copy files and enjoy videos simultaneously.
Specifications
Type: PCI Express to USB Card
External USB Ports: 4 port USB 3.0
Internal USB Ports: USB 3.0
External Ports: 4 port USB 3.0
Data Transfer Rate: Up to 5.0 Gbps
Operating Systems Supported: Windows XP/Vista/7/8/8.1 (32/64 bit)
Features
Chipset: VL805-Q6
Supports 4 downstream ports for all speeds
Supports the following speed data rates as follows:
Low-speed (1.5Mb/s) / Full-speed (12Mb/s) / High-speed (480Mb/s) / Super-speed (5Gb/s)
Single-lane (x1) PCI Express throughput rates up to 5 Gb/s
Support USB Battery Charging Specification Revision 1.2
Fully compliant with PCI Express Base Specification Revision 2.0
Compliant with Universal Serial Bus 3.0 specification Revision 1.0
Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
Compliant with Intel's eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
Built-in 4-pin power connector for receiving extra power supply from system
Hot-swapping feature allows you to connect/disconnect devices without powering down the system
Size:4-Port USB 3.0
Just insert the RC-508 into the PCI-E slot of your motherboard,
and own USB 3.0 ports immediately.
PCI Express (PCI-E) is a standard interface on most types of motherboards.
With PCI-E, RC-508 provides high-speed data transferring between PC and USB 3.0 devices,
up to 5 Gbps; thus, you may directly enjoy high-resolution videos stored in your USB 3.0 storage,
other than copying them to your PC in advance.
RC-508 offers 4 ports of USB 3.0,
and each supports backwards compatibility to USB 2.0 and 1.1 automatically,
making it easy to copy files and enjoy videos simultaneously.
Specifications
Type: PCI Express to USB Card
External USB Ports: 4 port USB 3.0
Internal USB Ports: USB 3.0
External Ports: 4 port USB 3.0
Data Transfer Rate: Up to 5.0 Gbps
Operating Systems Supported: Windows XP/Vista/7/8/8.1 (32/64 bit)
Features
Chipset: VL805-Q6
Supports 4 downstream ports for all speeds
Supports the following speed data rates as follows:
Low-speed (1.5Mb/s) / Full-speed (12Mb/s) / High-speed (480Mb/s) / Super-speed (5Gb/s)
Single-lane (x1) PCI Express throughput rates up to 5 Gb/s
Support USB Battery Charging Specification Revision 1.2
Fully compliant with PCI Express Base Specification Revision 2.0
Compliant with Universal Serial Bus 3.0 specification Revision 1.0
Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
Compliant with Intel's eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
Built-in 4-pin power connector for receiving extra power supply from system
Hot-swapping feature allows you to connect/disconnect devices without powering down the system
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
if you're running out of USB ports on your computer or you just want to add some more USB 3 ports maybe you don't have any USB 3 ports a great way to do that is to add an expansion card and in this video we have the emolia PCIe to type C there's one type C port on this + 4 USB 3 ports this is what you get in the Box here just open the box alright this is what you get obviously the card a driver CD which you probably don't need to use you can use it if you want windows will use a driver we'll get to that later on and it actually includes a couple of power cables so here's your set of power right into your power supply and that gives you two ports there which is great so one of those will actually go into the card because it needs power if you don't have any set up power free you have the molex connector here as well so that's what you get let's go and take the card out here so here's a c
